Disassembly and Assembly
3-36 EPSON Stylus Color 3000 Service Manual
Rear Paper Guide Removal
1. Remove the upper housing (See page 3-4).
2. Remove the printer mechanism (See page 3-10).
3. Remove the paper eject frame (See page 3-21).
4. Remove the CR unit (See page 3-30).
5. Remove PF roller shaft (See page 3-35).
6. Remove two screws (CBS, 3×6) securing the paper feed guide frame to the left frame and middle frame.
Then remove the paper feed guide frame.
7. Release the hook securing the rear paper guide to the right end of the bottom frame. Then shift the rear
paper guide to the left and remove it.

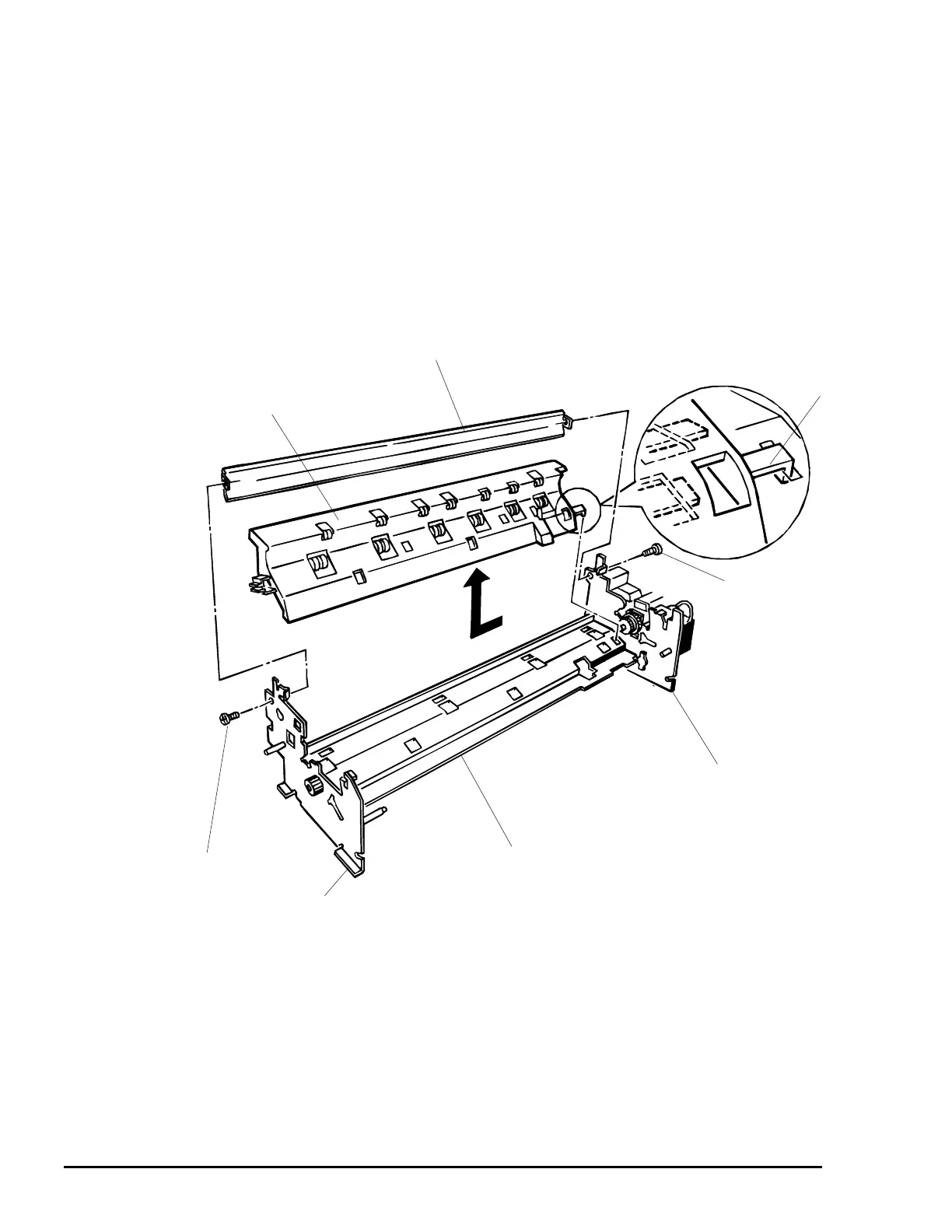

Rear Paper Guide
Paper Feed Guide Frame
Hook
CBS Screw (3×6)
Middle Frame
Bottom Frame
Left Main Frame
BS Screw (3×6)
Figure 3-35. Rear Paper Guide Removal
To Next Page
