Paper Eject Frame Removal
1. Remove the upper housing (See page 3-4).
2. Remove the printer mechanism. (See page 3-10).
3. Remove connector cables from the connectors on the HP sensor.
4. Remove four screws (CBS, 3×6) securing the paper eject frame to the printer mechanism.
5. Remove the paper eject frame from the printer mechanism by releasing the joint with the CR unit.
R
EMINDER
When removing the paper eject frame, insert a piece of clean paper between the platen
surface in the paper eject frame and printheads in the CR unit to protect the printheads.
CBS Screws (3×6)
Printer Mechanism
CBS Screws (3×6)
Paper Eject Frame

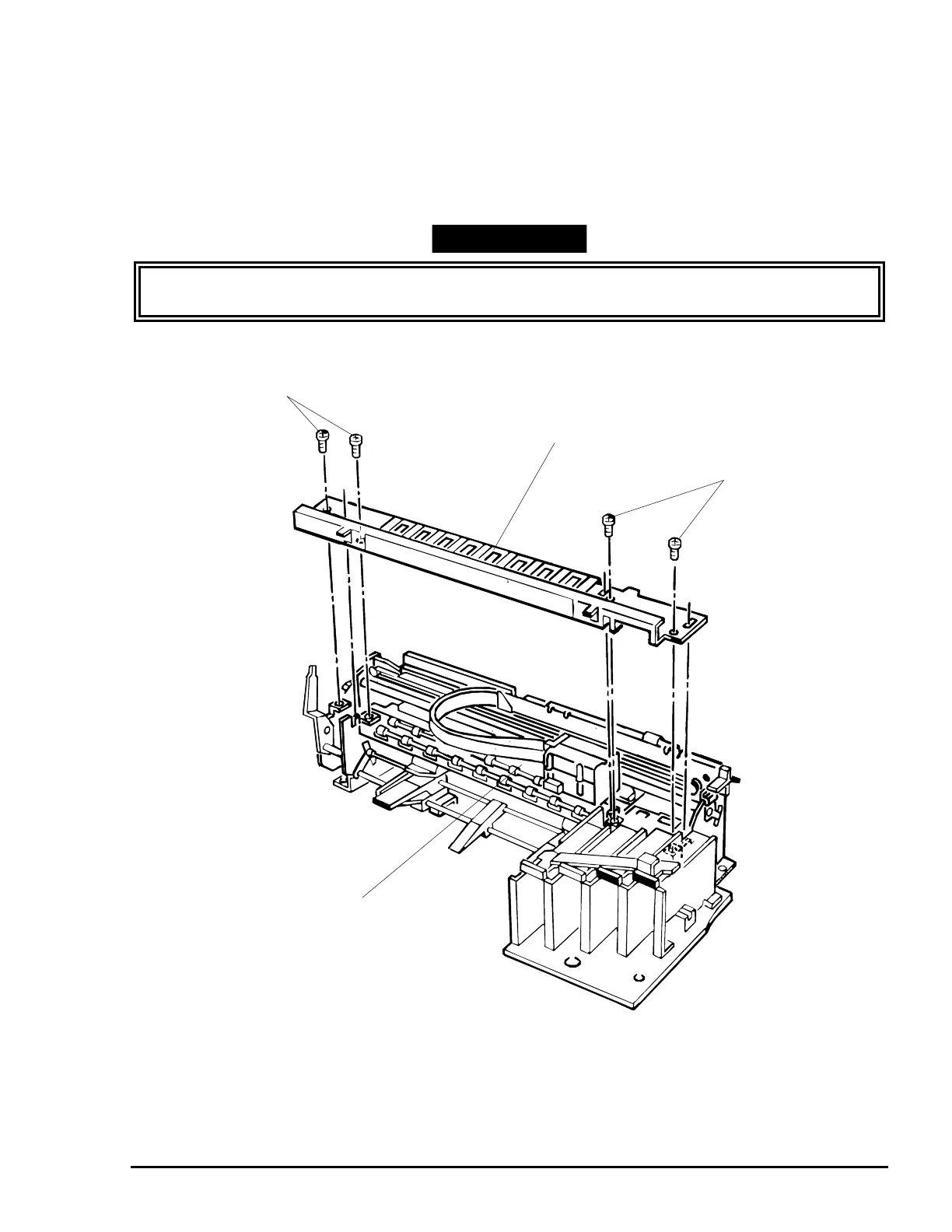

Figure 3-19. Paper Eject Frame

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
