Epson Stylus COLOR 3000 Service Manual

Operating Principles
EPSON Stylus Color 3000 Service Manual
2-6
ASF (Auto Sheet Feeder)
When the printer is not printing, the PF motor drive disengage mechanism detects the position of the CR unit
and engages the planetary gear so the PF motor drives the LD rollers in the ASF. The LD roller shaft has 2
cams that push down the paper support so the paper surface contacts the LD rollers. The one-way clutch
rotates the LD roller in a specified direction to load paper. Once the paper is loaded, the ASF transmission
gear is disengaged and the paper feed mechanism moves the paper.
One-way Clutch
ASF Transmission Gear
PF Drive Roller
Front PE Sensor
LD Rollers
ASF
Paper
PF Motor
PF Motor Pinion Gear
Paper Support
Cam
Cam

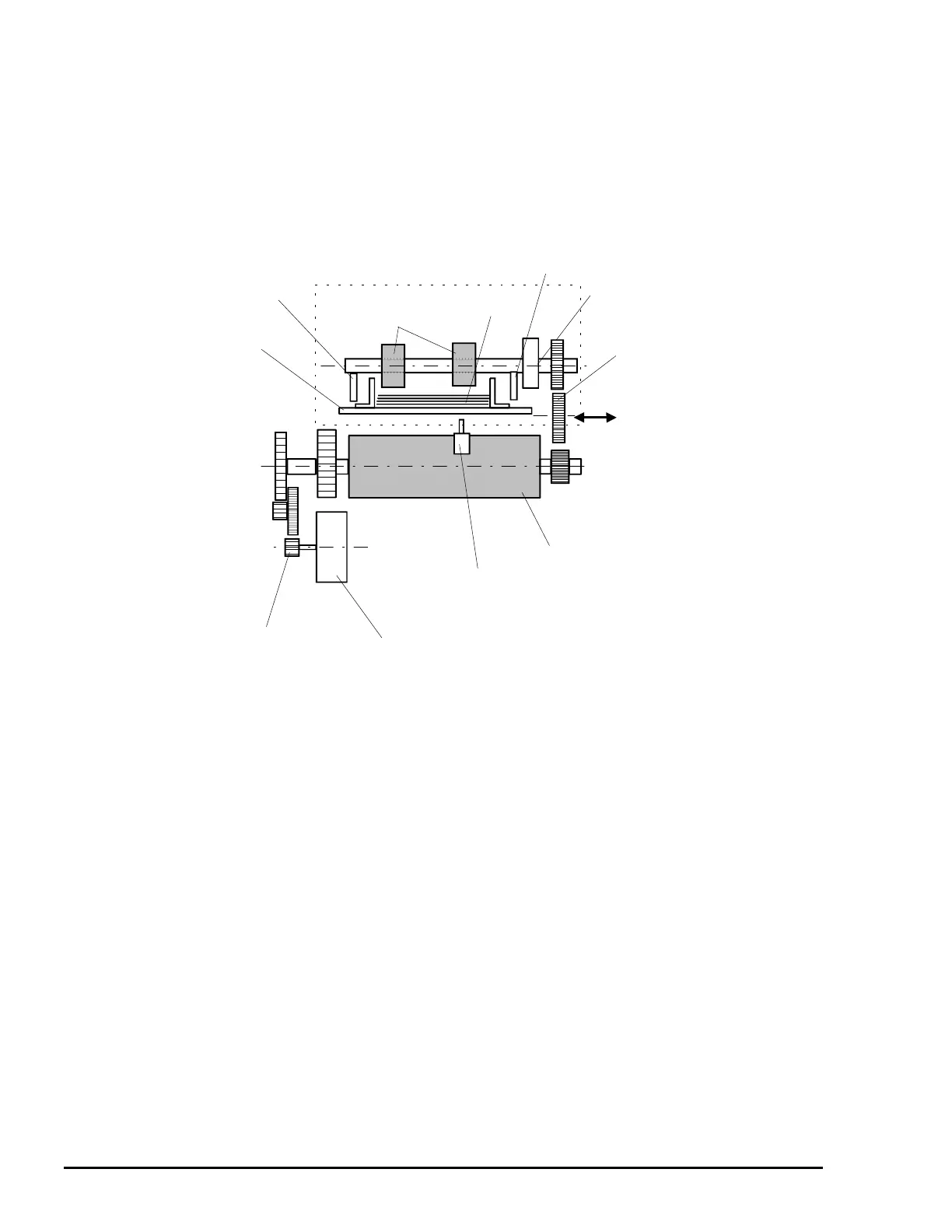

Figure 2-6. Auto Sheet Feeder

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
