Epson Stylus COLOR 3000 Service Manual

Disassembly and Assembly
3-32 EPSON Stylus Color 3000 Service Manual
Paper Feed Shaft Removal
1. Remove the upper housing (See page 3-4).
2. Remove the printer mechanism (See page 3-10).
3. Remove the paper eject frame (See page 3-21).
4. Remove the CR unit (See page 3-30).
5. Remove one screw (CBP, 3x8) securing the ink supply tube to the tube holder on the printer mechanism
with tube holder (B). Then release the tubes from the printer mechanism.
6. Set the traction/friction release lever to the tractor position and push the release transmission lever (a
black plastic lever located at the inner side of the left frame) inward. Then turn the sub tractor release
cam as shown in Figure 3-30 until it fits into the cutout on the left frame. Then release the joint for the sub
tractor cam and left frame.
7. Pull out the tractor release shaft along with the tractor sub release cam.
8. Remove five screws (CBS, 3×6) securing the base frame to the printer mechanism. Then remove the
base frame.

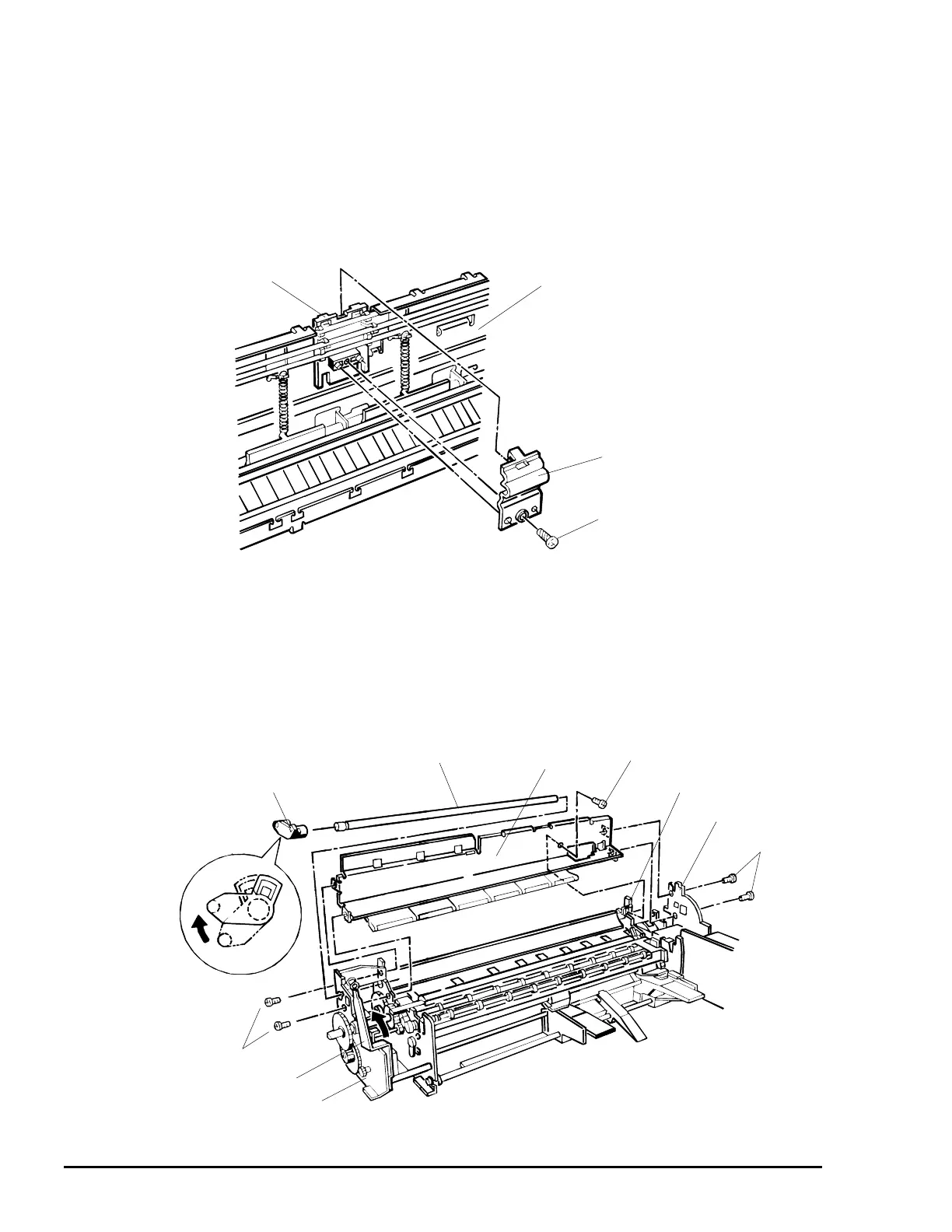

Tube Holder
Base Frame
Tube Holder B
CBP Screw (3×8)
Figure 3-29. Ink Tube Removal
Sub Tractor Release Cam
Tractor Release Shaft
Base Frame
CBS Screw (3×6)
Middle Frame
Right Main Frame
CBS Screws (3×6)
CBS Screws
(3×6)
Left Frame
Release Transmision Lever
Figure 3-30. Base Frame Removal

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
