EPSON Stylus Color 3000 Service Manual 1-21
Optional Interface
The EPSON Stylus COLOR 3000 supports an optional Type-B interface (Level 2) with the following
characteristics.
Reply message
Using Co-ax / Twin-ax I/F card
When ESC/P2 is selected:
Main type MTP48p, PW161cl10cpi, PRG(W0xxxx)rev, AP800ma
Product name Stylus COLOR 3000
Emulation type ESCPL2-00
Entity type EPSONLQ2
When XL24E is selected:
Main type MTP48p, PW161cl10cpi, PRG(W0xxxx)rev, AP800ma
Product name Stylus COLOR 3000
Emulation type PRPXL24-00
Entity type EPSONPRPXL24
Using an I/F card other than Co-ax / Twin-ax I/F card
When ESC/P2 is selected:
Main type MTP48p, PW161cl10cpi, PRG(W0xxxx)rev, AP800ma, SPD0fast
Product name Stylus COLOR 3000
Emulation type ESCPL2-00
Entity type EPSONLQ2
When XL24E is selected:
Main type MTP48p, PW161cl10cpi, PRG(W0xxxx)rev, AP800ma, SPD0fast
Product name Stylus COLOR 3000
Emulation type PRPXL24-00
Entity type EPSONPRPXL24
1
2
345
678

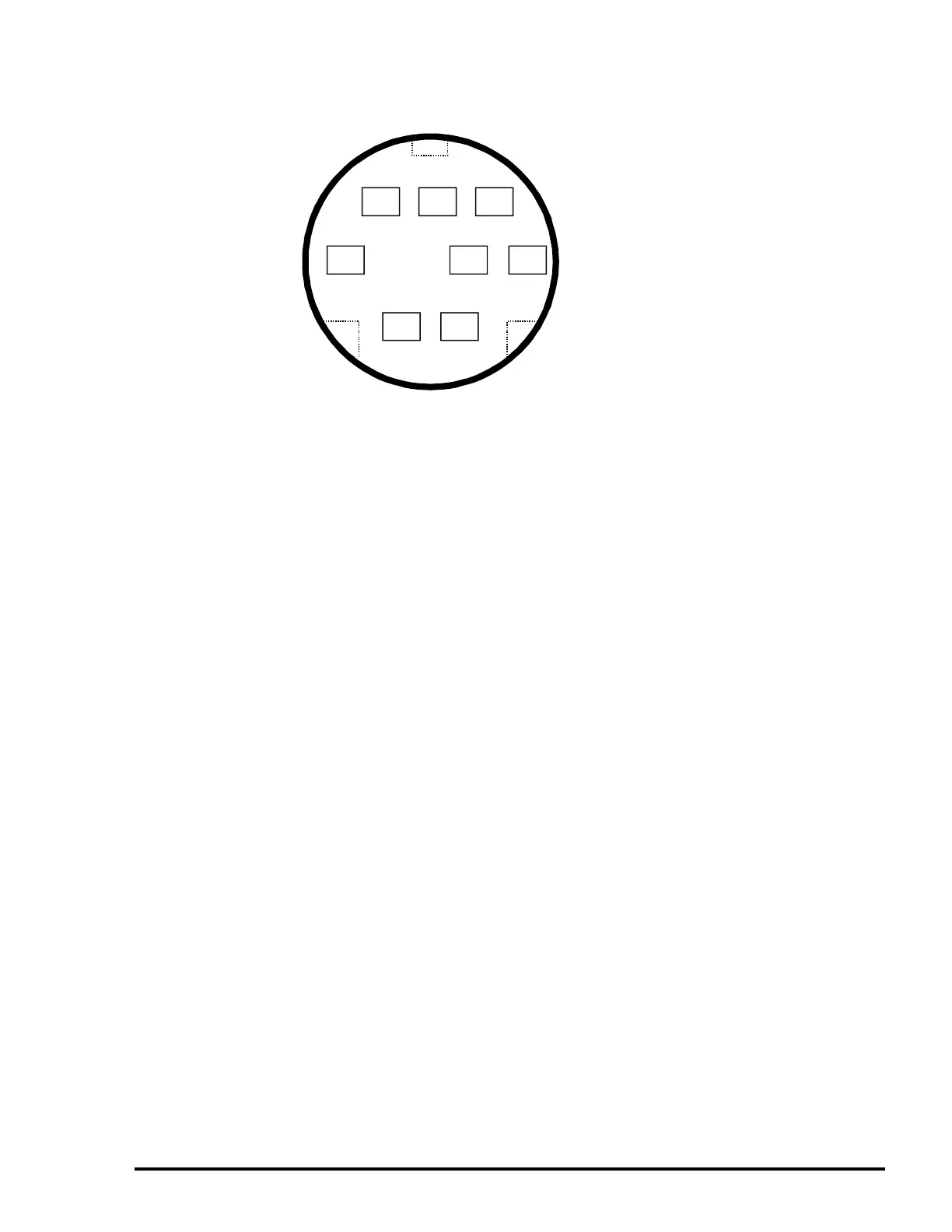

Figure 1-9.
Macintosh Serial Interface Connector Pin
Assignments

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
