1.6 Main Components
The main components of the EPSON Stylus COLOR 3000 are as follows:
Main control board C203 MAIN
Power supply board C172 PSB/PSE
Control panel board C203 PNL
Printer mechanism M-4J60
Housing
C203 Main Control Board
This board consists of the following:
16-bit CPU (IC5) (clock wave: 19.66Mhz)
Gate arrays B05B33 (IC6), B05B45 (IC16)
PROM (IC13)
CG-ROM (IC11)
DRAM (IC12)
SRAM (IC14, IC28)
RESET ICs (IC3, IC9)
EEPROM (IC1)
Motor driver ICs (IC17, IC18) for the pump motor and PF motor
Motor driver ICs (IC19, IC20) for CR motor
Printhead common
driver hybrid ICs (IC22, IC23)
Pump Motor Driver
PF Motor Driver
CR Motor Driver
E05B45 (GA) E05B33 (GA)
Color Printhead Common Driver
Black Printhead Driver CG
DRAM H8/2655 (CPU)

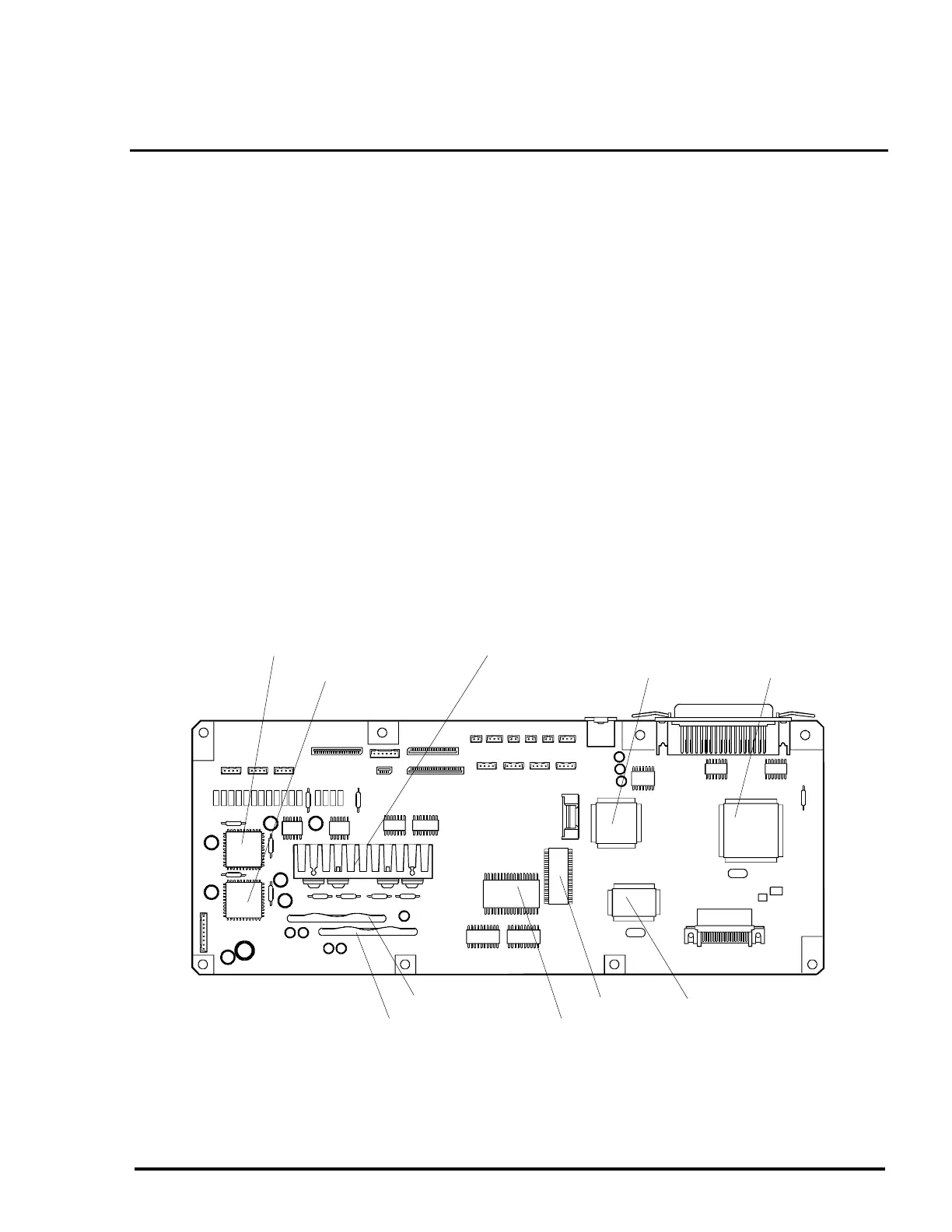

Figure 1-13. C203 Main Board Component Layout

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
