Epson Stylus COLOR 3000 Service Manual

EPSON Stylus COLOR 3000
EPSON Stylus Color 3000 Service Manual
3
-23
Edge Guide Removal
See the following page for installation notes.
1. Remove the upper housing (See page 3-4).
2. Remove the printer mechanism (See page 3-10).
3. Release the joints for the slide covers on the paper feed shaft and the edge guides.
4. Disconnect the connector cable for the PQ (Paper Quantity) sensor located on the right side of the right
edge guide.
5. Remove the screw (CBS, 3×8) securing the ink cartridge holder to the middle frame so that the flange nut
under the cartridge holder will be removed easily in the next step.
6. Remove two flange nuts (M4) securing the edge guide to the left frame and middle frame. Then remove
the edge guide.
R
EMINDER
When attaching the edge guide to the printer mechanism, connect the edge guide rack to the
pinion on the damper.
CBS Screw (3×8)
Cartridge Holder
Flange Nut (M4)
Rotary Damper
Edge Guide
Flange Nut (M4)
Slide Covers
Paper Feed Shaft

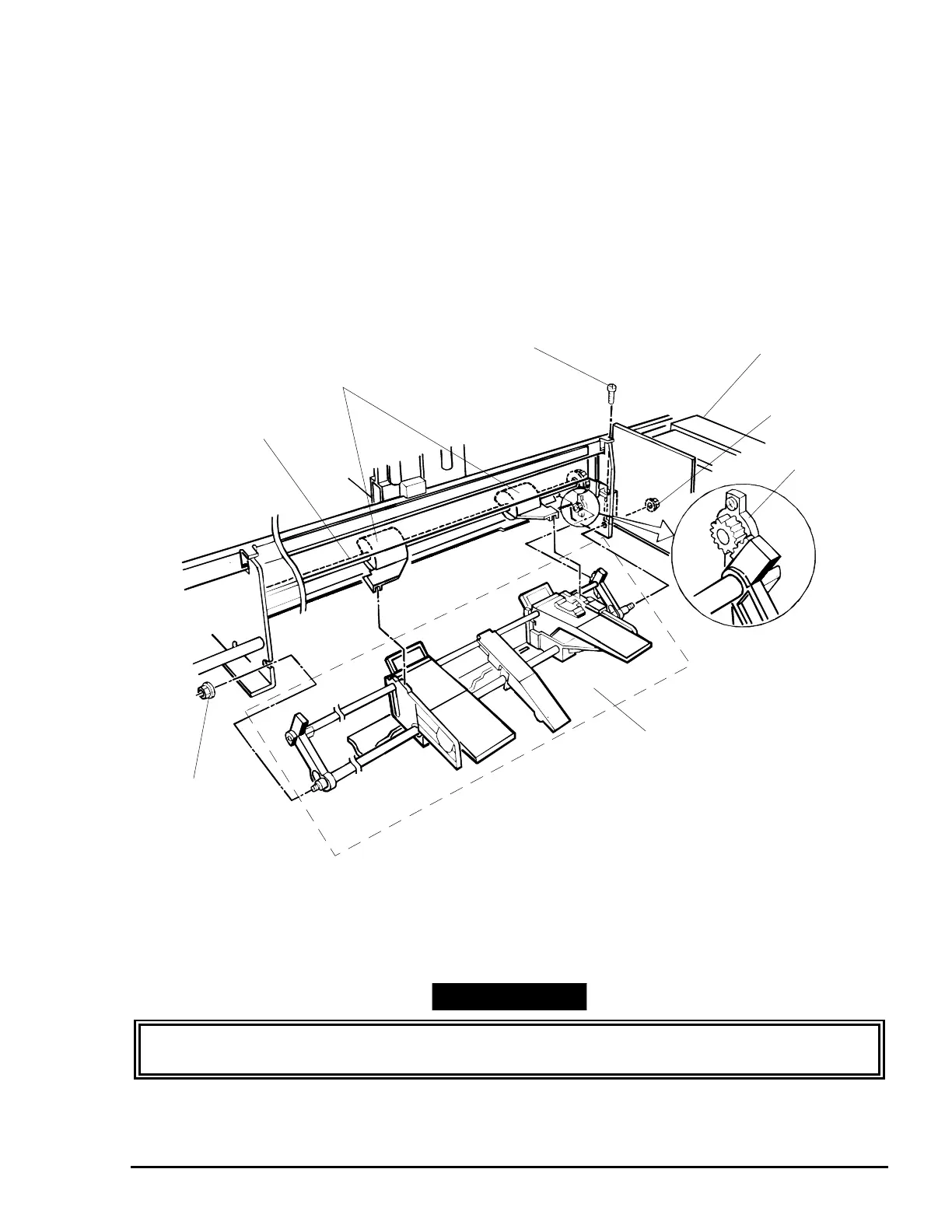

Figure 3-21. Edge Guide Removal

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
