Epson Stylus COLOR 3000 Service Manual

EPSON Stylus COLOR 3000
EPSON Stylus Color 3000 Service Manual
3
-37
Middle Frame Removal
1. Remove the upper housing (See page 3-4).
2. Remove the printer mechanism (See page 3-10).
3. Remove the paper eject frame (See page 3-21).
4. Remove the pump (See page 3-23).
5. Remove the edge guide (See page 3-23).
6. Remove the CR unit (See page 3-30).
7. Remove the paper feed shaft (See page 3-32).
8. Remove the PF roller (See page 3-35).
9. Remove one screw (CBS, 3x6) securing the paper feed frame guide to the middle frame.
10. Remove the connector cable for the middle frame from its clamp.
11. Remove two screws (CBS, M 3×6) securing the middle frame to the bottom frame and 1 screw (CBS,
3x8) holding the ink cartridge holder base. Then remove the middle frame.
Bottom Main Frame
Middle Frame
CBS Screws (3×6)
CBS Screw (3×8)
Flange Nut
LD Guide Frame
Rear Paper Guide Assembly
Edge Guide

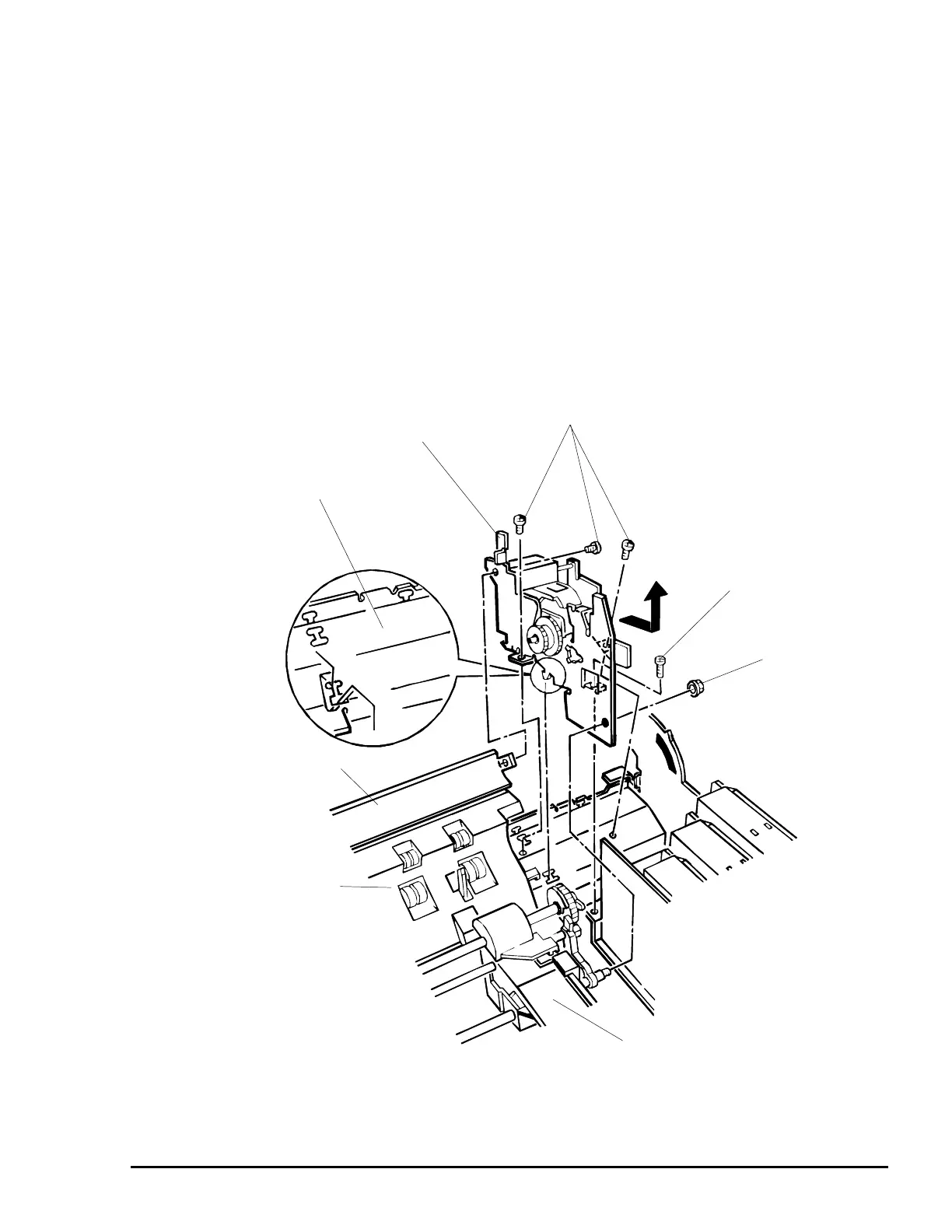

Figure 3-36. Middle Frame Removal

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
