Epson Stylus COLOR 3000 Service Manual

EPSON Stylus COLOR 3000
EPSON Stylus Color 3000 Service Manual
2
-1
2.1 Overview
This chapter describes the operating principles of the printer mechanism and electrical circuits.
2.2 Printer Mechanism Operating Principles
Printer Mechanism
The printer mechanism is composed of the printhead unit, paper feed mechanism, CR (Carriage)
mechanism and the pump mechanism. The block chart for the printer mechanism is shown in Figure 2-1.
The printer mechanism has 3 motors: CR motor, PF (Paper Feed) motor, and pump motor. Torque from the
CR motor moves the CR in the column direction. The PF motor loads, feeds, and ejects paper. The pump
motor drives the pump mechanism. The release lever switches from the PF motor side to the tractor side to
feed continuous paper.
Release Lever
Disengage Mechanism
PF Motor
CR Motor
Color
Push Tractor Mechanism
Paper Feed Mechanism
ASF Mechanism
(For Cut sheets only.)
Pump Mechanism
CR Unit
Pump Motor
Black
Printhead
Printhead

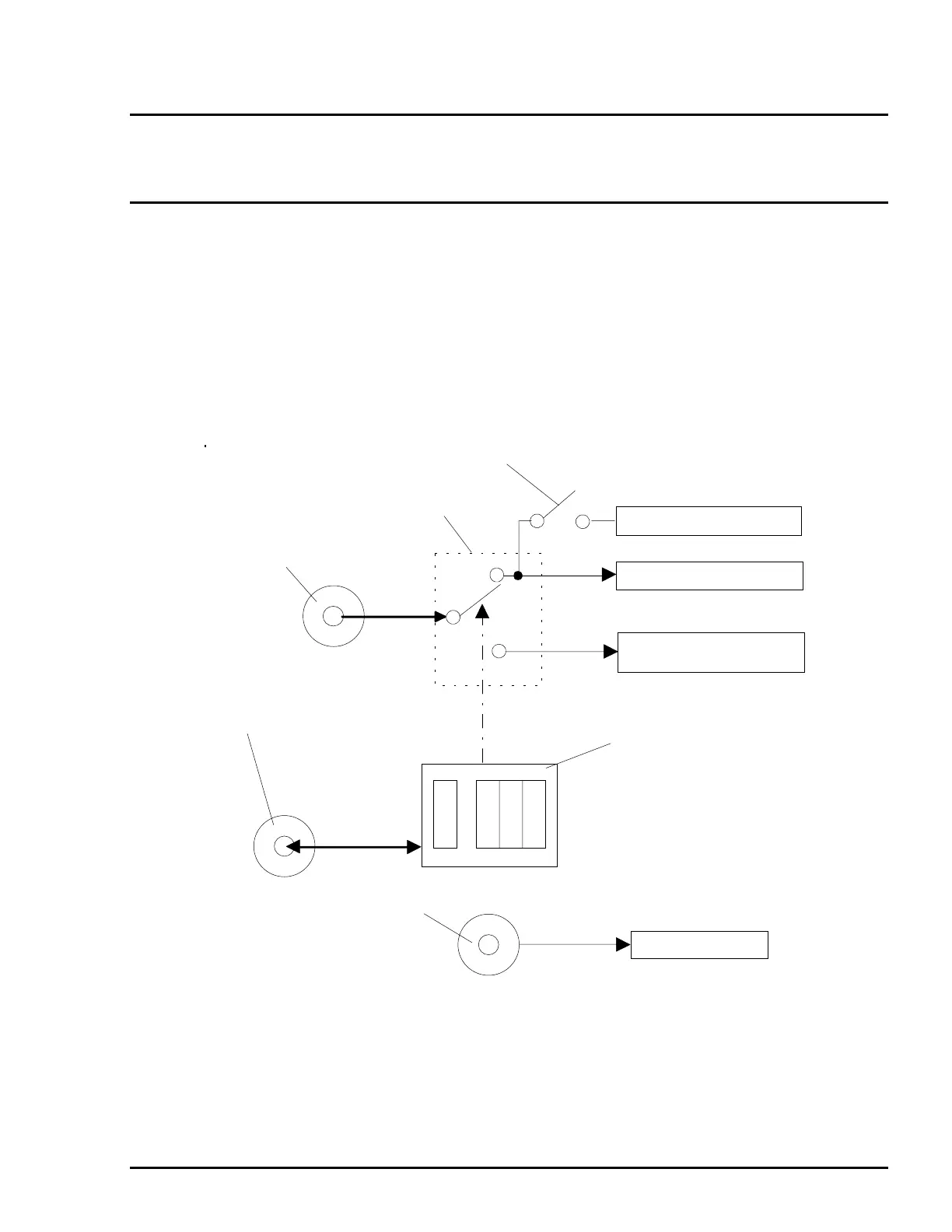

Figure 2-1. Printer Mechanism Block Diagram

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
