Epson Stylus COLOR 3000 Service Manual

Adjustment
EPSON Stylus Color 3000 Service Manual
4-18
ASF PW Sensor Adjustment
 Follow the steps exactly in the way instructed, otherwise a fatal error may occur.
 If these adjustments are inaccurate, proper operation of the printer is not guaranteed.
1. Enter the Sensor Check menu (See page 4-16).
2. Select ASF-Width and press Enter.
3. Spread both edge guides to their maximum width and press Enter.
4. Move the left edge guide to the right as far as it will go, then press Enter.
5. Move the left edge guide to the left as far as it will go.
6. Place the paper width detector position tool (with the A4 side in) next to the right edge guide and move
the left edge guide to the right until it comes into contact with the tool. Then press Enter.
7. Place the paper width detector adjust tool (with the A4 side out) over the right and left edge guides and
adjust the left edge guide to the left end of the tool, as shown in the figure below. Then press Enter; the
Sensor Check menu appears.
CAUTION
Right and Left Edge Guides
Paper Width Detector Position Tool (A4 In)

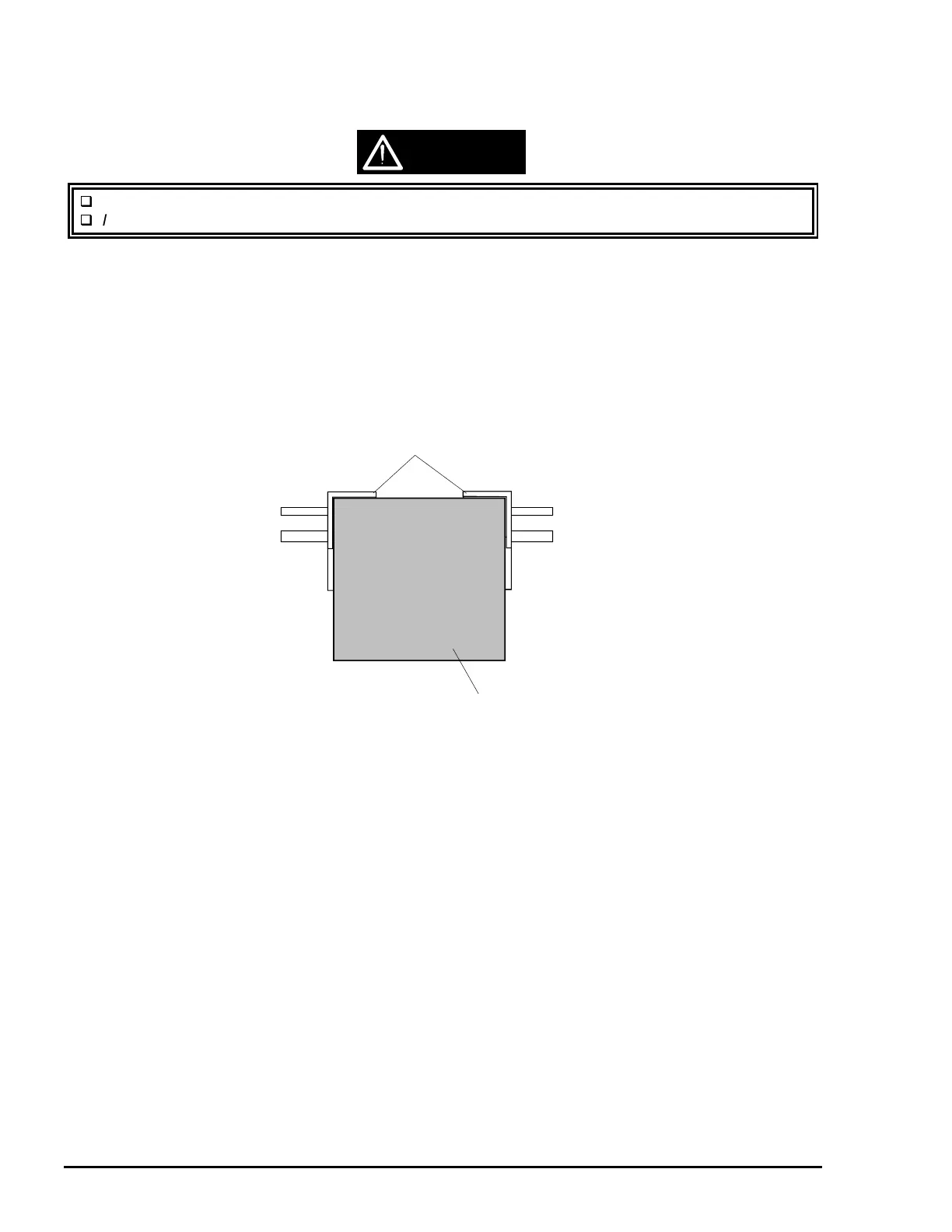

Figure 4-11.
Placing the PW Sensor Detector Position Tool

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
