HP Sensor Removal
1. Remove the upper housing (See page 3-4).
2. Disconnect the connector cable from the HP sensor connector.
3. Using tweezers, release the hook securing the HP sensor to the HP sensor holder and remove the HP
sensor.
HP Sensor Holder
HP Sensor Connector Cable
Tweezers
HP Sensor
HP Sensor Holder
HP Sensor

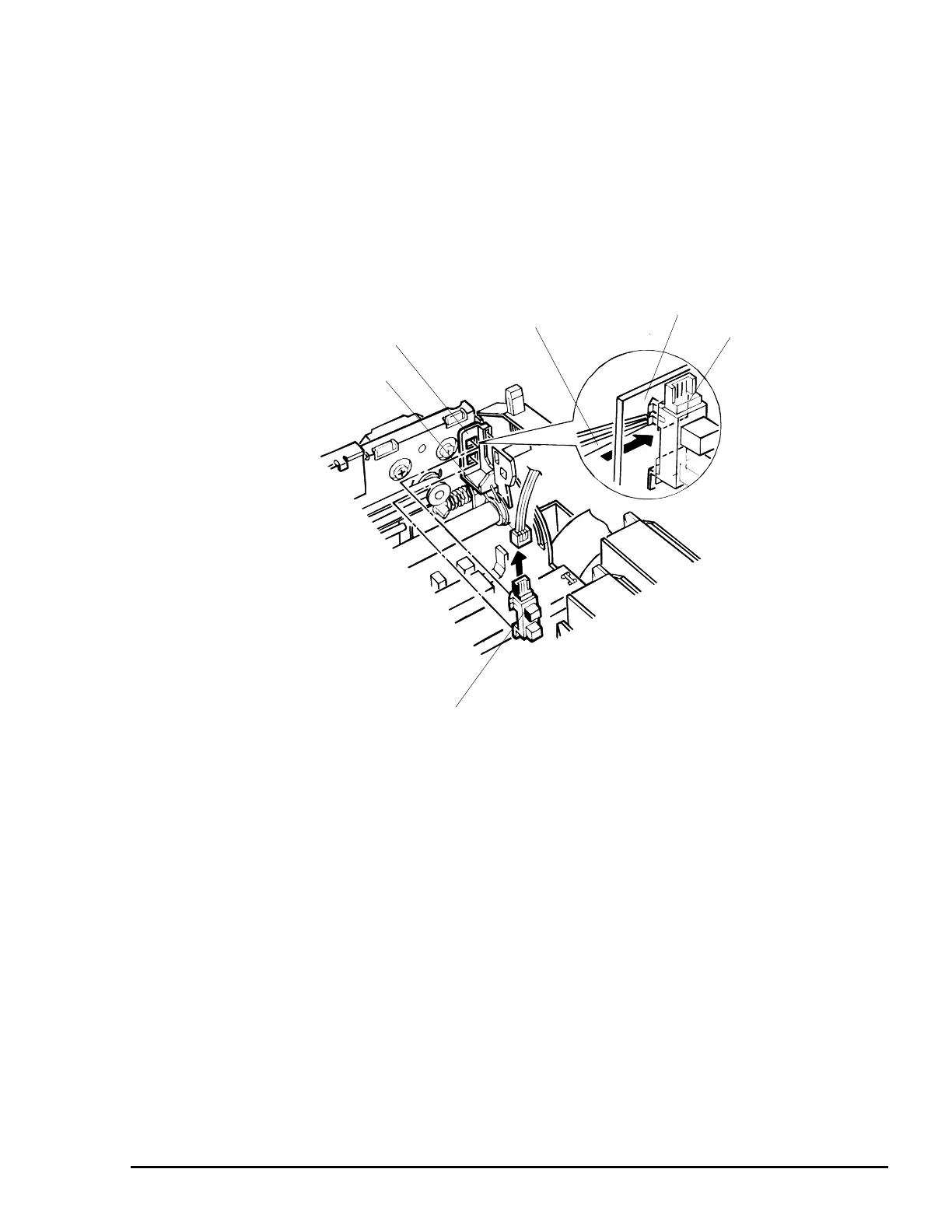

Figure 3-7. HP Sensor Removal
