Disassembly and Assembly
3-8 EPSON Stylus Color 3000 Service Manual
Tube Cover
Tube Holding Leaf Spring
Printhead Mounting Screw
Damper Assembly for Black Ink
Damper Assemblies for Color Ink
Black Printhead
Printhead Mounting
Screw
Plain Washer
(6.3
×
0.2
×
8.3)
CR PW
Sensor Board
Black Printhead Cable
Color Printhead Cable
Compression Spring (9.9)
Color Printhead
Plain Washer
(6.3
×
0.2
×
8.3)
CR Unit
Tube Clamp

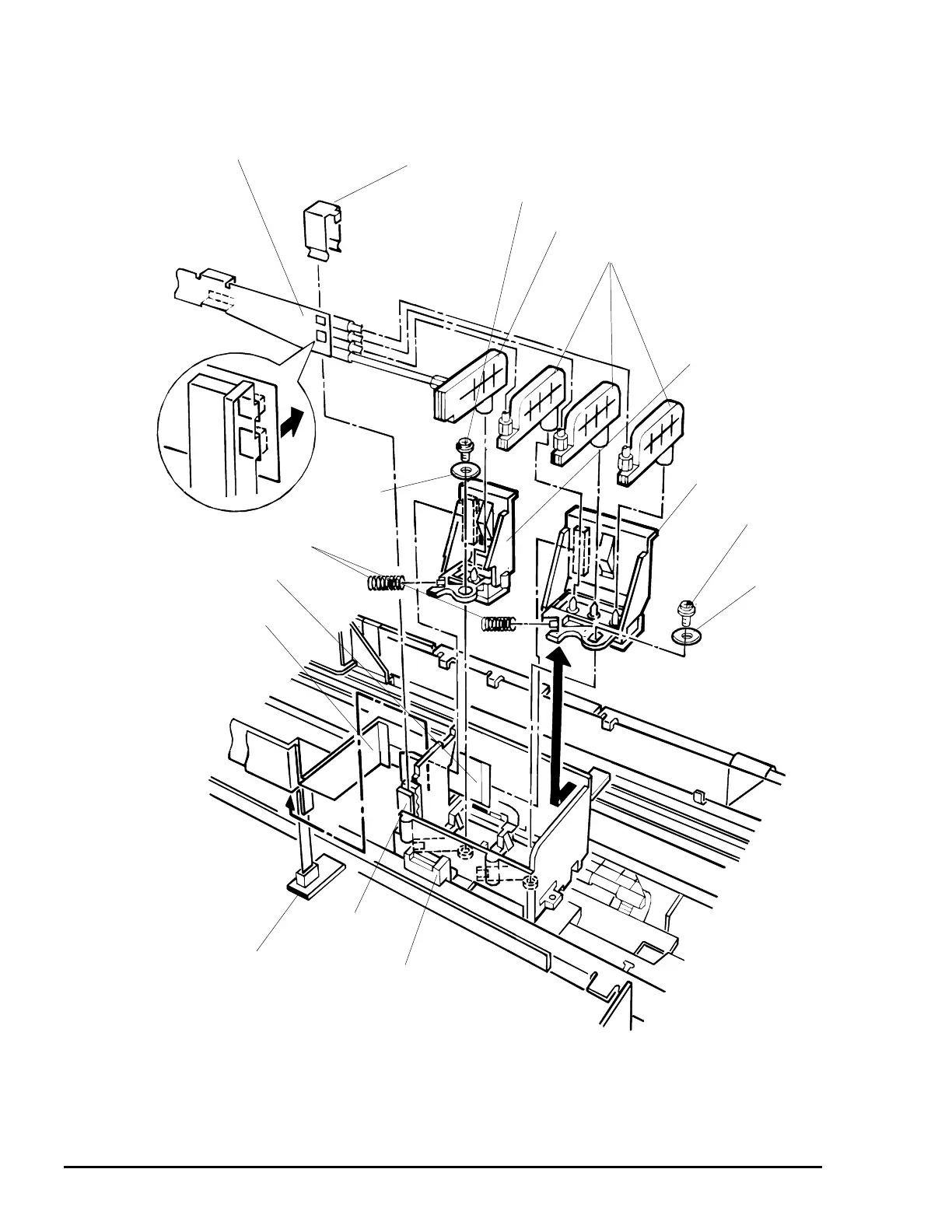

Figure 3-6. Black/Color Printhead Removal
