Product Description
EPSON Stylus Color 3000 Service Manual
1-12
Adjust Lever
The adjust lever, located on the upper right side of the printer cover, adjusts the gap between the paper and
platen. The adjust lever must be set to the proper position for the paper type to avoid ink smudges.
Paper Type Lever Position
Platen Gap Adjustment
Value
Cut sheets
Transparencies
Continuous paper
Toward rear of printer
(0)
0 in.
Envelopes
Index cards
Toward front of printer
(+)
+ 0.028 in. (0.7 mm)
Table 1-15. Adjust Lever Position
PG Adjust Lever
Printer Cover

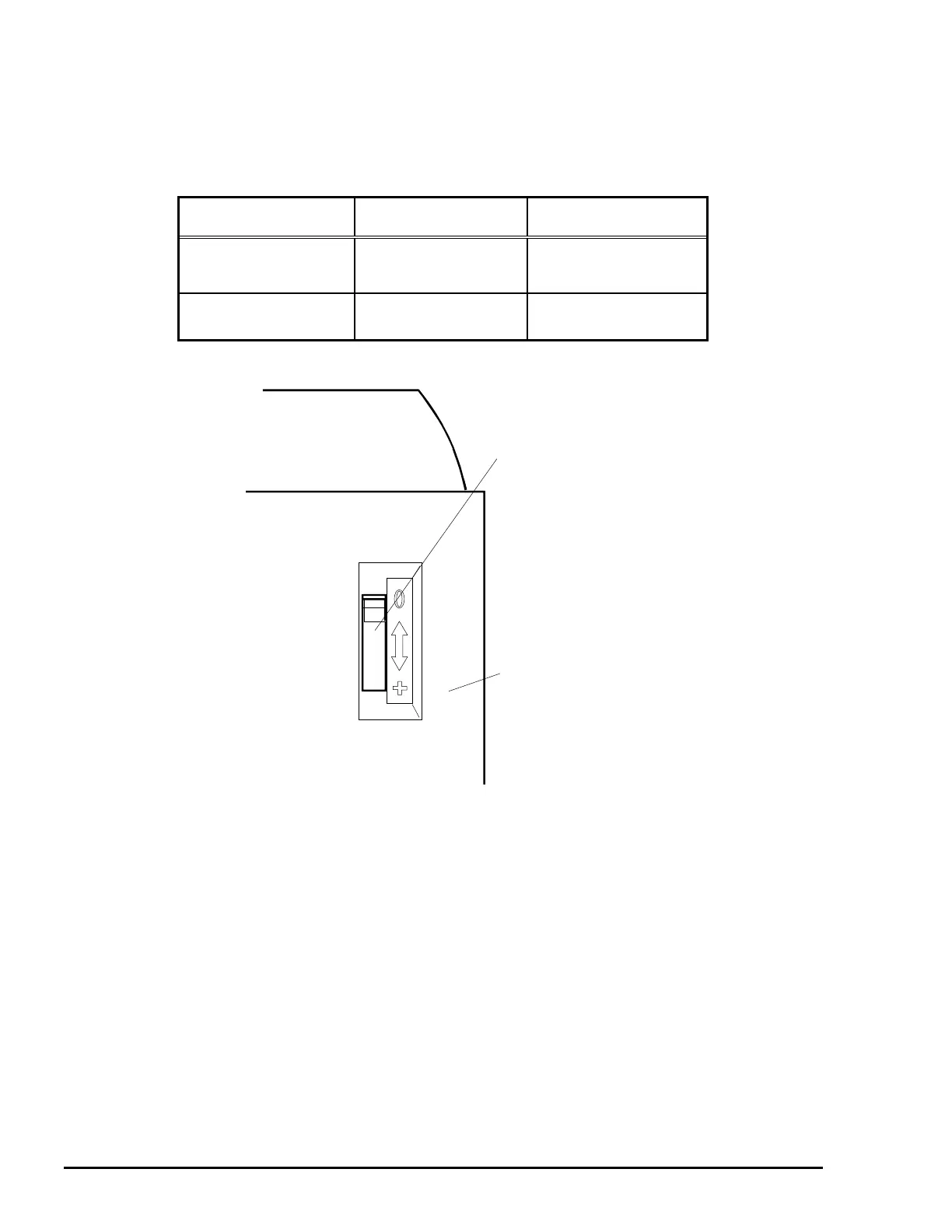

Figure 1-6. Adjust Lever Settings
