Epson Stylus COLOR 3000 Service Manual

Disassembly and Assembly
3-16 EPSON Stylus Color 3000 Service Manual
Printer Mechanism Disassembly
Pages 3-16 through 3-37 describe procedures for printer mechanism disassembly.

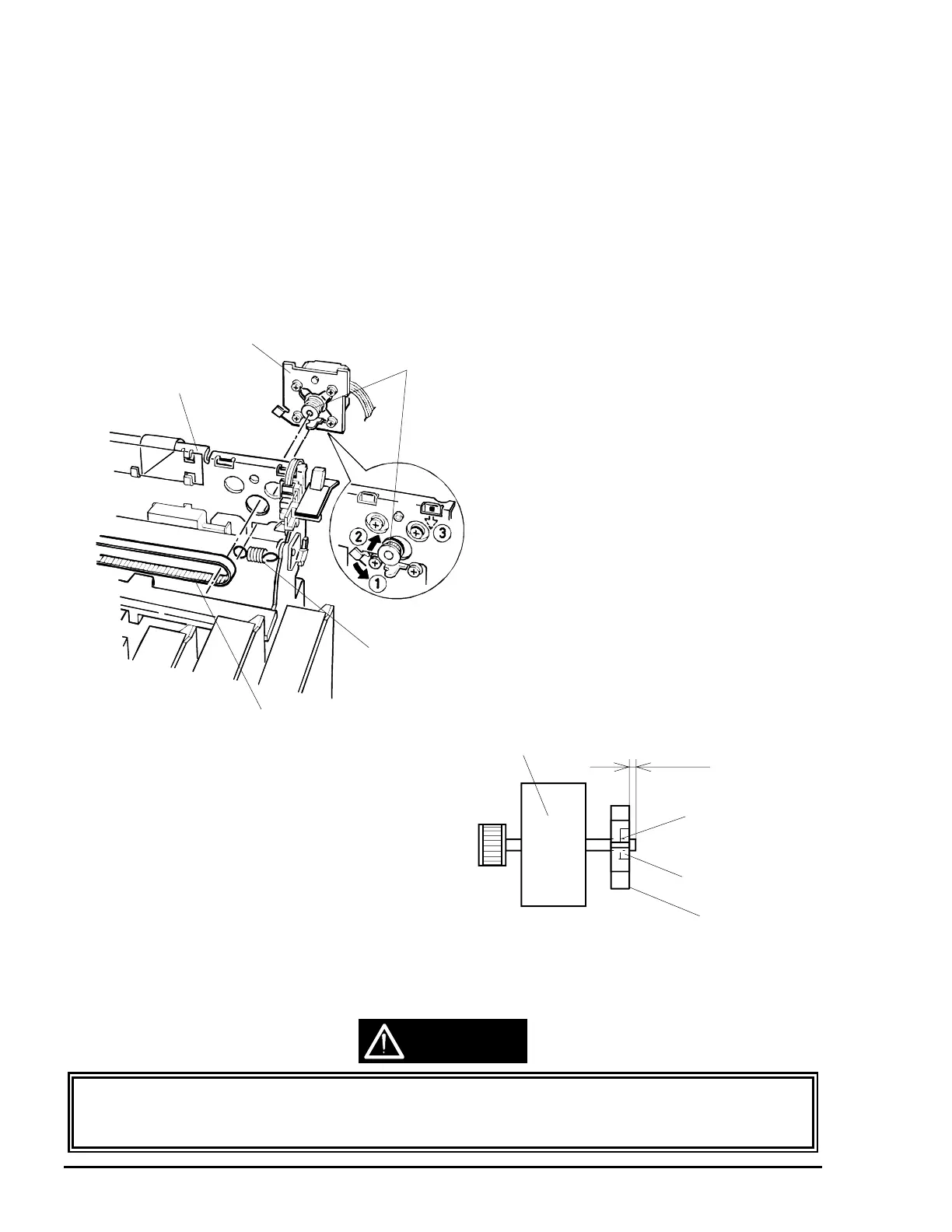

CR Motor Removal
1. Remove the upper housing (See page 3-4).
2. Remove the printer mechanism. (See page 3-10).
3. Disconnect the belt tension spring to loosen the timing belt.
4. Remove the timing belt from the pulley on the CR motor.
5. Release the joint for the CR motor and base frame by turning the motor counterclockwise in the order
shown by steps 1 to 3 in Figure 3-13. Then remove the CR motor by pulling it toward the bottom edge of
the base frame.
CAUTION
The CR motor fan and CR motor are 2 separate parts. Therefore, mount the CR motor fan with
the specified adhesive when replacing the CR motor. Leave between 0-2 mm at the end of the
CR motor shaft, as shown in Figure 3-14.
Base Frame Assembly
CR Motor
CR Motor Pulley
Timing Belt
Belt Tension Spring
Figure 3-13. CR Motor Removal
C
R Motor Assembly
Indent side facing outward
CR Motor Fan
Adhesive
Shaft End: 0~2 mm
Figure 3-14. Adhering the CR Motor and Fan

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
