Epson Stylus COLOR 3000 Service Manual

Product Description
EPSON Stylus Color 3000 Service Manual
1-4
1.3 Specifications
This section provides detailed information on the EPSON Stylus COLOR 3000.
Printing Specifications
Printing method
On-demand ink jet
Nozzle configuration
Monochrome 128 nozzles (32 x 4 staggered rows)
Color (magenta, cyan, yellow) 64 nozzles (32 x 2 staggered rows, each color)
Print direction
Bi-directional logic seeking for text and graphics
Character Pitch Printable Columns Draft Speed LQ Speed
10 cpi (Pica) 161 800 cps 400 cps
12 cpi (Elite) 193 960 cps 480 cps
15 cpi 242 1200 cps 600 cps
17.1 cpi (Pica condensed) 276 1368 cps 684 cps
20 cpi (Elite condensed) 322 1600 cps 800 cps
#2 #3
#4
#1
#125#126
#127#128
32/360 inch
144/360 inch
32/360 inch
#1
#2
#63
#64
Black
Cyan
#1
#2
#63
#64
Magenta
#1
#2
#63
#64
Yellow
2/360 inch
144/360 inch
320/360 inch
32/360 inch
32/360 inch
144/360 inch
Paper feed direction

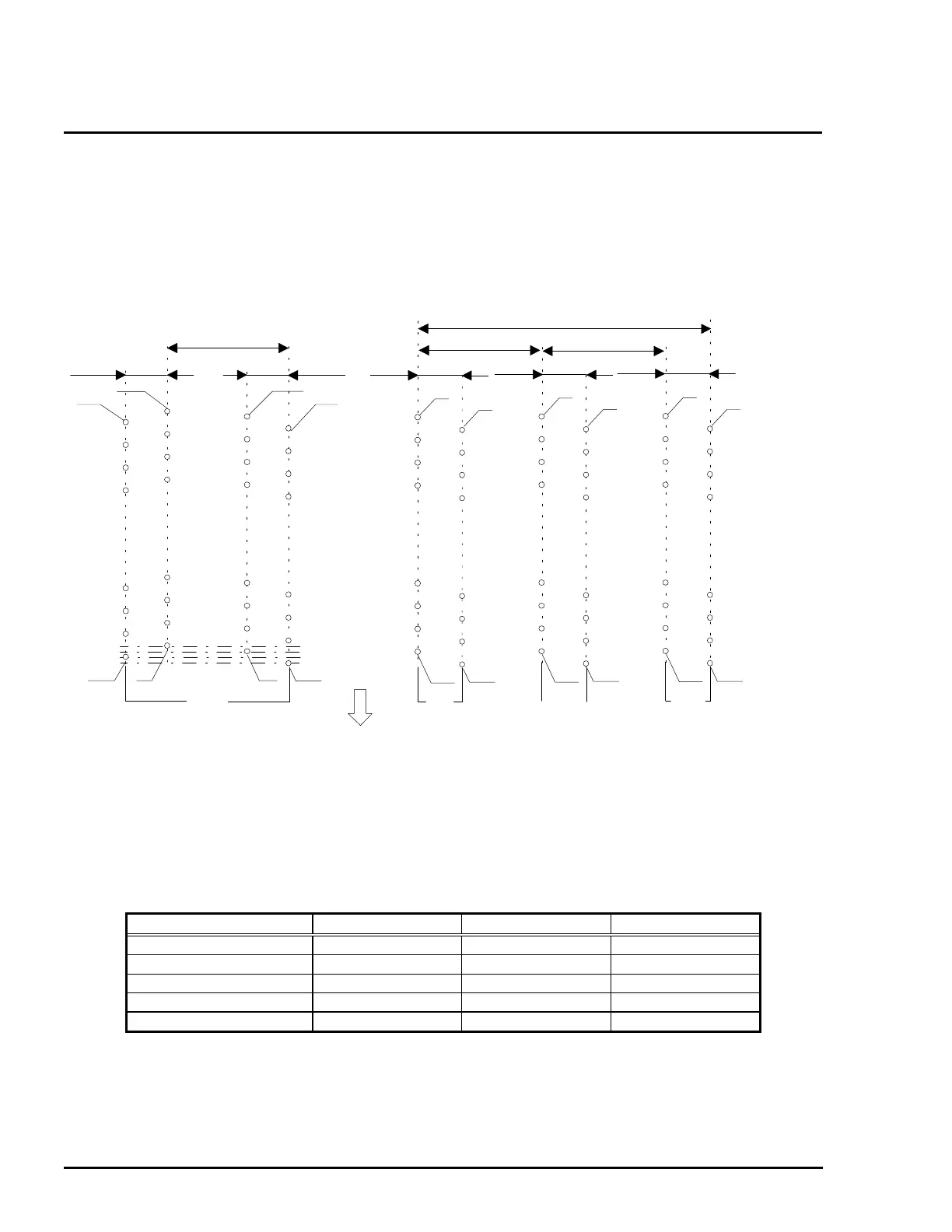

Figure 1-2. Nozzle Configuration
Table 1-2. Print Speed and Printable Columns for Character Mode

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
