Epson Stylus COLOR 3000 Service Manual

Product Description
EPSON Stylus Color 3000 Service Manual
1-34
C172 PSB/PSE Board
The C172 PSB/PSE board, like the one in the Stylus COLOR 1500, consists of a transformer, switching FET,
regulator IC (on the secondary circuit), diode bridge, fuse, and so on.
Control Panel
The control panel for this printer consists of 9 buttons and 13 printer LED indicators. See Figure 1-10 for
details.
Printer Mechanism Unit (M-4J60)
The printer mechanism unit for this printer is composed of the CR motor, PF motor, pump motor, printheads,
paper feeding mechanism, and ink system mechanism.
Housing
The housing for this printer consists of the upper housing, lower housing, printer cover, ink cartridge cover,
rear sheet guide, tractor unit, knob, adjust lever and release lever.
Fuse
Regulator IC
Transformer
Diode Bridge
Switching FET

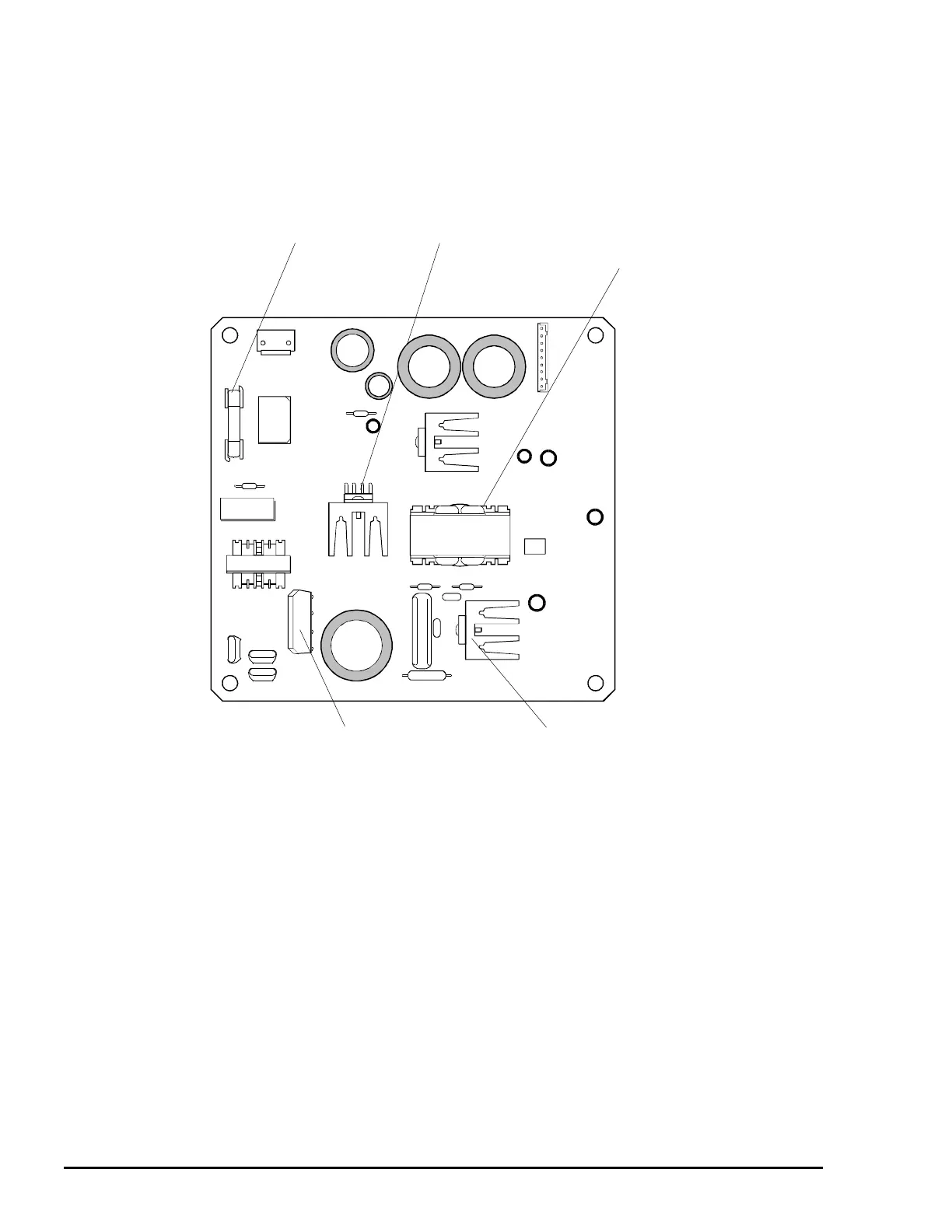

Figure 1-14. C172 PSB/PSE Board Component Layout

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
