Front/Rear PE Sensor Removal
1. Remove the upper housing (See page 3-4).
2. Remove the printer mechanism (See page 3-10).
3. Using tweezers, release the two hooks securing the front and rear PE sensors to the rear paper guide at
the bottom of the printer mechanism. Then remove the sensors.
4. Disconnect the sensor connector cables from the sensor connectors.
Rear Paper Guide
Connector Cable for the Rear PE Sensor
Rear PE Sensor
Hooks
Front PE Sensor
Connector Cable for the Front PE Sensor

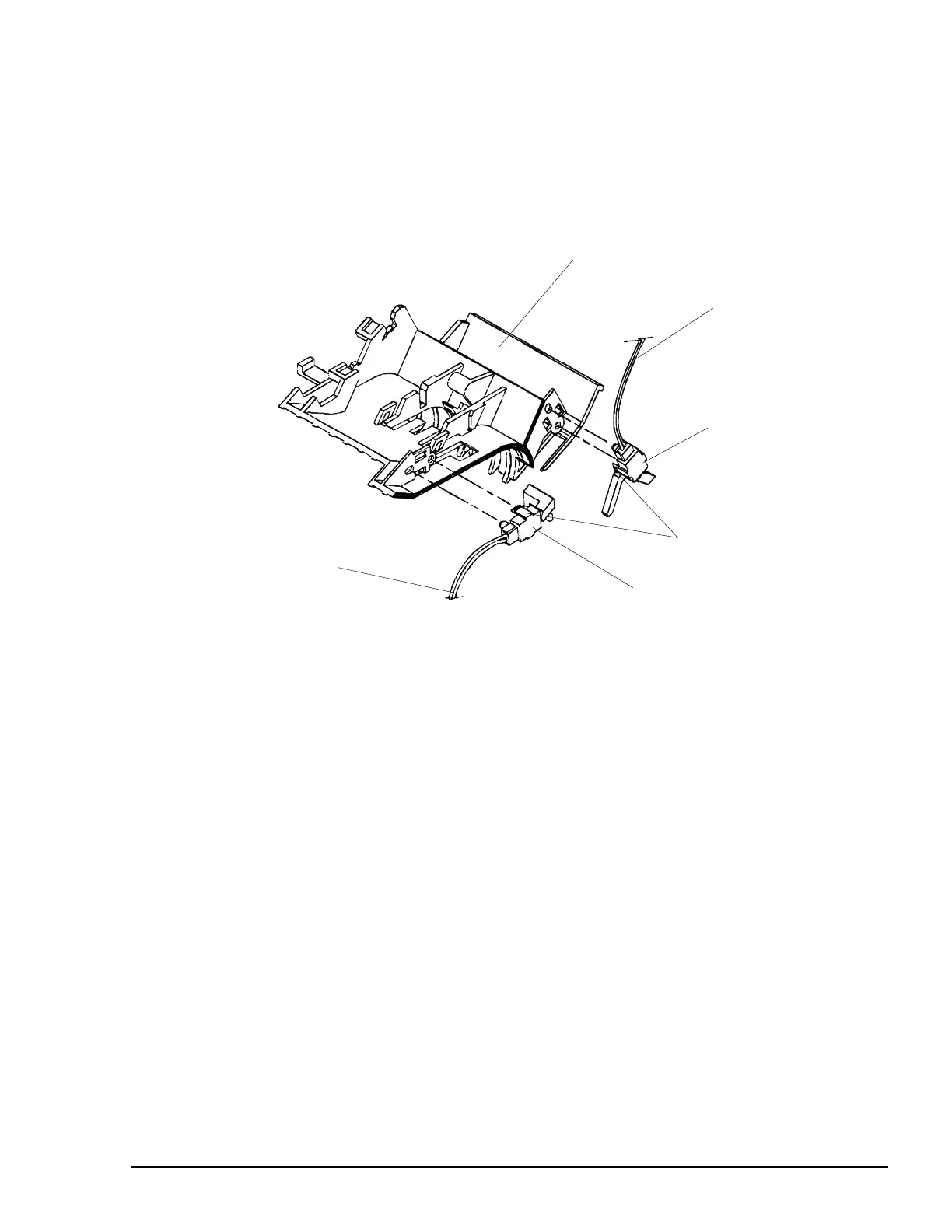

Figure 3-17. Front/Rear PE Sensor Removal
