Epson Stylus COLOR 3000 Service Manual

Product Description
EPSON Stylus Color 3000 Service Manual
1-30
Printer Adjustment Mode
The EPSON Stylus COLOR 3000 allows users to adjust the items listed in the table below.
Pattern No. Items
Pattern 1 Uni-d adjustment at 400 cps *
Pattern 2 Bi-d adjustment at 400 cps *
Pattern 3 Bi-d adjustment at 200 cps *
Pattern 4 Head gap adjustment between black and color to the cross
feed direction at 200 cps
†
Pattern 5 Head gap adjustment between black and color to the cross
feed direction at 100 cps
†
* With an increment of 1/1440 inch
† With an increment of 1/720 inch
Table 1-34. Printer Adjustment Patterns
Do the
patterns need to be
adjusted?
NO
YES
NO
Start
YES
Turn the printer off to save the new settings in the EEPROM.
Are
more adjustments
necessary?
Press the Pause button to set the selected
pattern number.
1.Move through the languages listed
by pressing the Micro Adjust
↑
button.
2.Select the language by pressing
the Pause button.
The printer prints an instruction
sheet on how to adjust the printer.
Press the Pause button while
turning on the printer.
The printer prints an instruction
sheet on how to select the language.
Select the most closely aligned pattern
by pressing the Media Type button.
1. Select the appropriate test by
pressing the Micro Adjust
↑
button.
2. Press the Pause button.
The printer prints the test patterns.

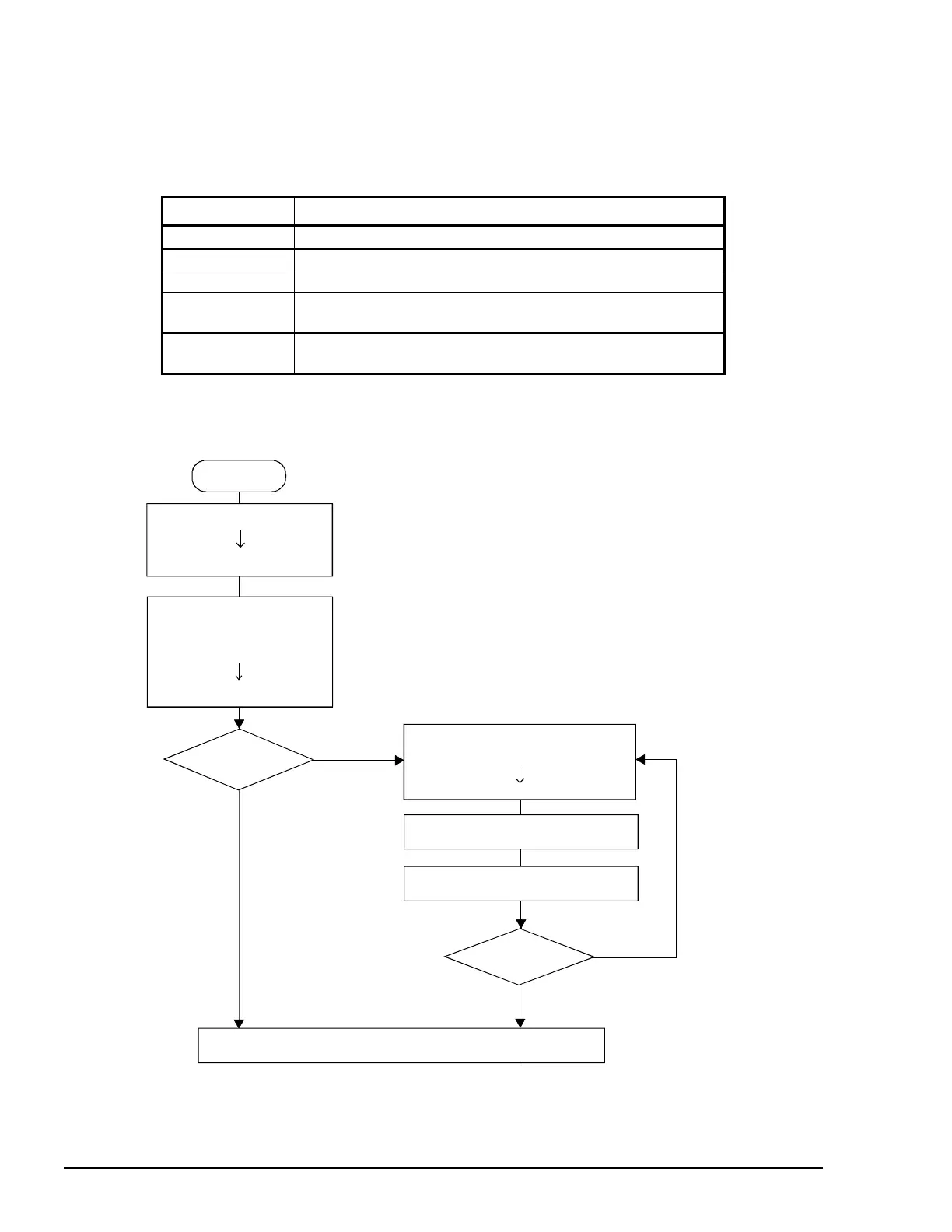

Figure 1-12. Printer Adjustment Flowchart

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
