EPSON Stylus Color 3000 Service Manual
4
-19
Paper Length Sensor Adjustment
 Follow the steps exactly in the way instructed, otherwise a fatal error will occur.
 If these adjustments are inaccurate, proper operation of the printer is not guaranteed..
1. Enter the Sensor Check menu (See page 4-16).
2. Select ASF-Length and press Enter.
3. Place a sheet of letter-sized paper (or the letter size tool) against the right edge guide and adjust the left
edge guide to the paper or tool, as shown in the figure below.
4. Put the rear edge guide up, adjust it to the rear edge of the paper and press Enter.
5. Remove the paper or tool and place the rear edge guide in the down position, flush with the paper tray.
6. Place a B4-size paper or B4 size tool against the right edge guide, then adjust the left edge guide to the
paper or tool, as shown in the figure below. Press Enter.

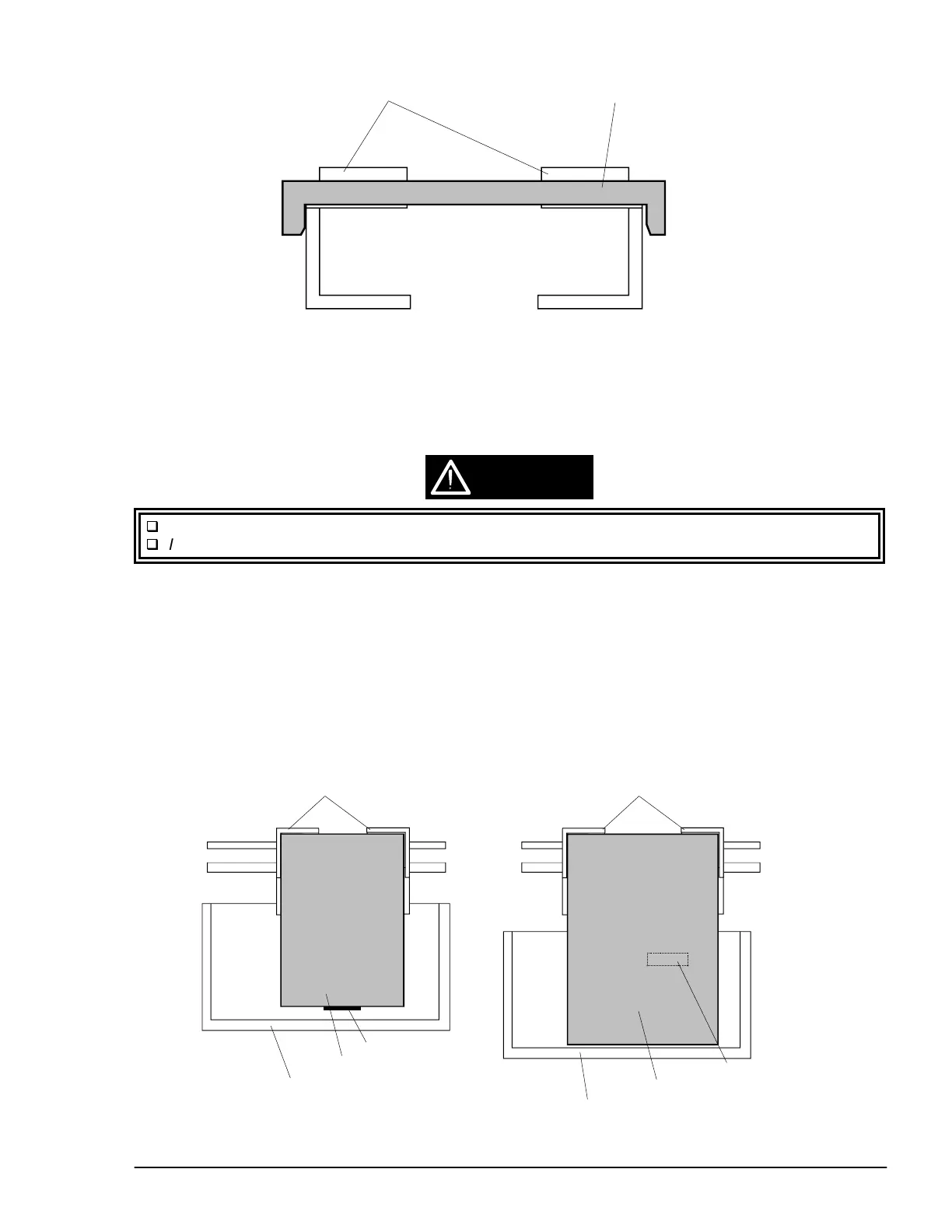

Right and Left Edge Guides
Paper Width Detector Position Tool (A4 Out)
Figure 4-12.
Placing the PW Sensor Detector Position Tool
CAUTION
Right and Left Edge Guides
Rear Edge Guide (Down)
Letter-size Paper or the Letter-size tool.
Paper Tray Extension
Right and Left Edge Guides
B4-size Paper or the B4-size tool.
Paper Tray Extension (Out)
Rear Edge Guide (Up)
Figure 4-13. Setting the Letter/B4 Size Tool
