Release Sensor Removal
1. Remove the upper housing (See page 3-4).
2. Remove the printer mechanism (See page 3-10).
3. Using tweezers, release the hook securing the release sensor to the left frame. Then remove the release
sensor.
Release Sensor
Left Frame
Hook
Release Sensor Connector Cable

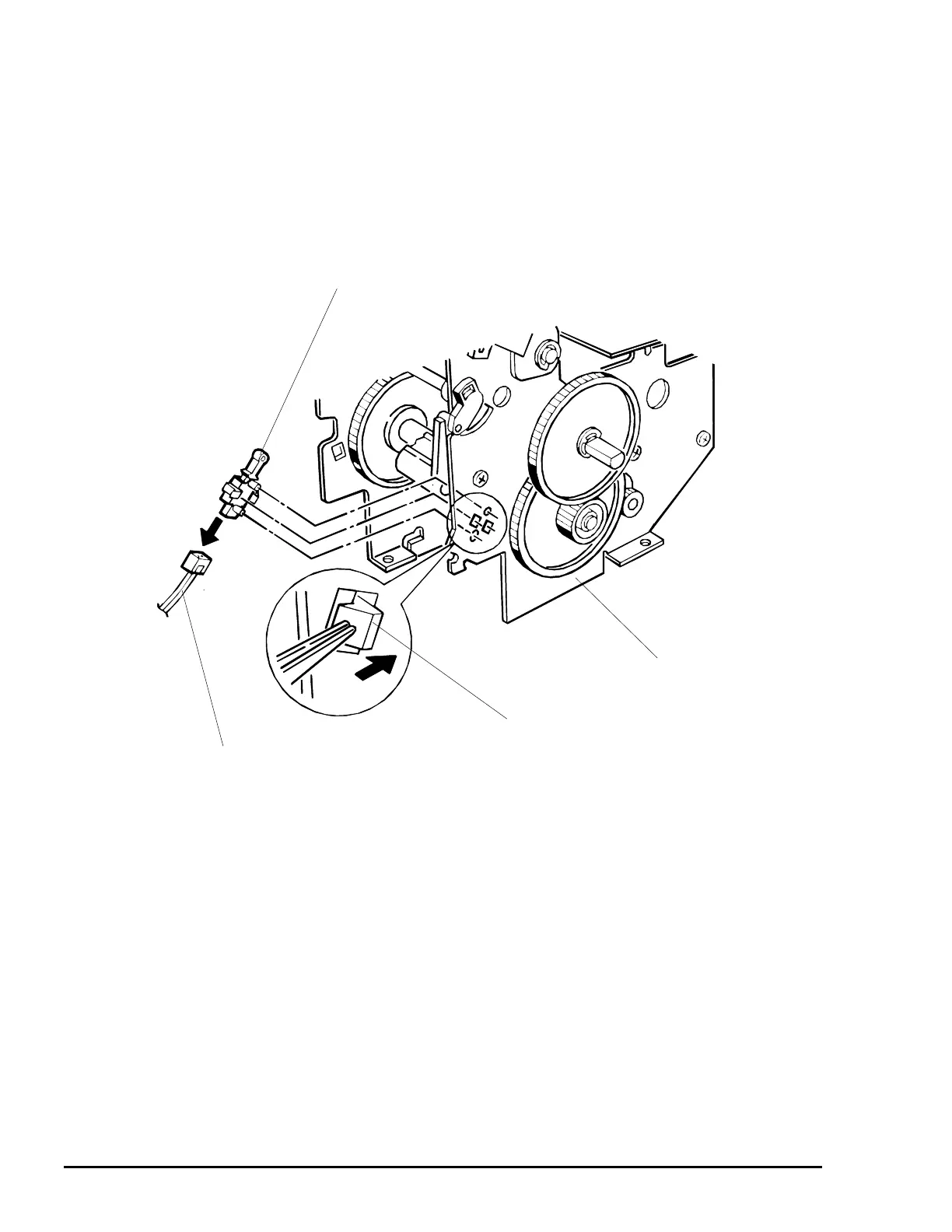

Figure 3-18. Release Sensor Removal
