Epson Stylus COLOR 3000 Service Manual

Disassembly and Assembly
3-6 EPSON Stylus Color 3000 Service Manual
ROM Replacement
1. Remove two screws securing the ROM cover to the bottom of the lower housing and remove the ROM
cover.
2. Remove the ROM.
Disconnect the power cable from the AC socket before replacing the ROM.
CR PW (Paper Width) Sensor Board Removal
1. Remove the upper housing (See page 3-4).
2. Remove two screws (CBP, 3×8) and two plain washers (3×0.5×7) securing the damper cover to the CR
unit.
Note: If the ink cartridges are installed, remove them to avoid ink leakage during disassembly and
assembly.
3. Remove the damper cover.
4. Insert tweezers into the small cutout inside the CR unit and push the notch. Then remove the CR PW
sensor cover covering the black and color cables by pulling it up.
5. Remove the CR PW sensor board from the black printhead cable.
CAUTION
CBP Screws (3x8)
Plain Washer (3X0.5X7)
Damper Cover
CR PW Sensor Connector Cable
for the Black Printhead
CR Unit
CR PW Sensor Board
Plain Washer (3X0.5X7)
CR PW Sensor Cover
Notch

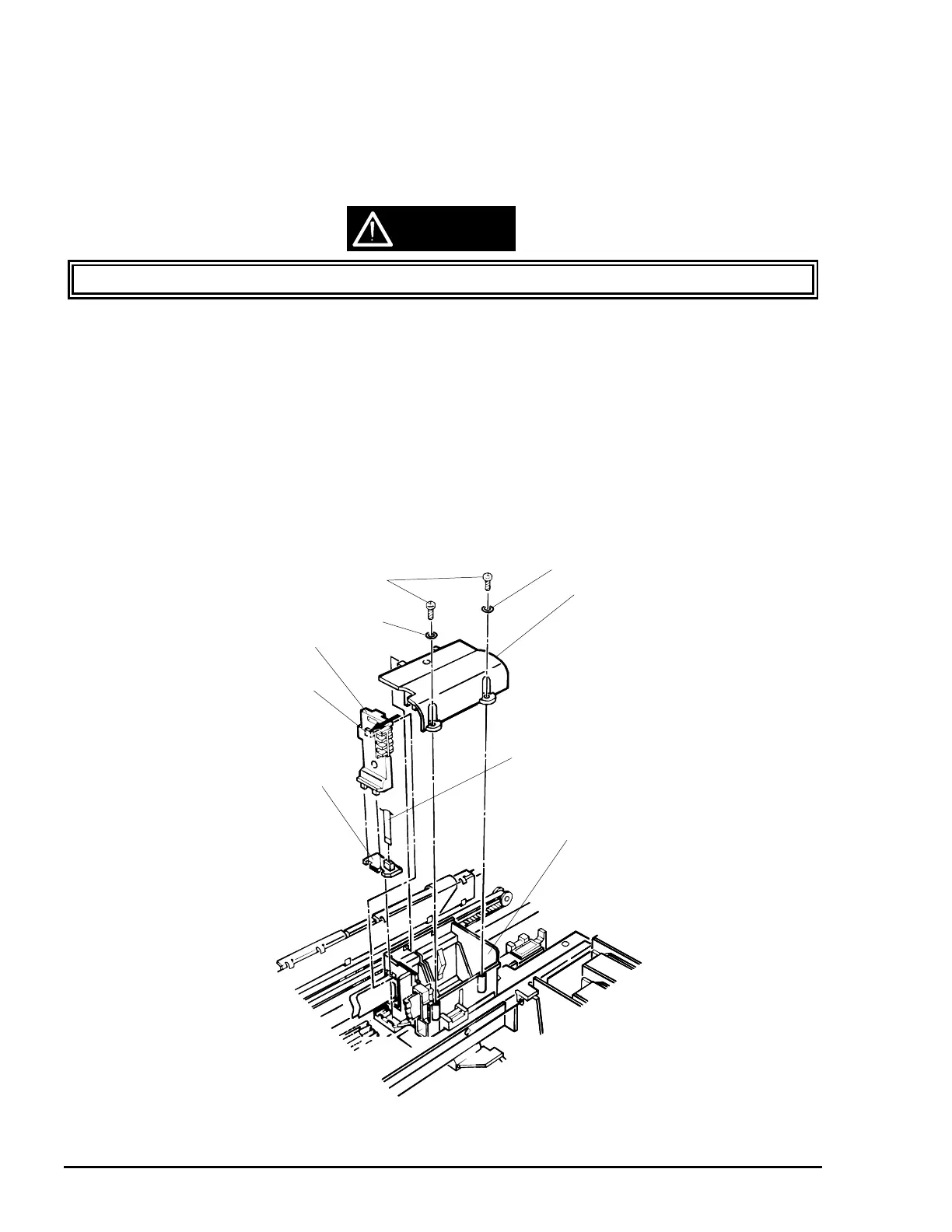

Figure 3-5. CR PW Sensor Board Removal

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
