Epson Stylus COLOR 3000 Service Manual

EPSON Stylus COLOR 3000
EPSON Stylus Color 3000 Service Manual
3
-5
4. Remove the ASF by grasping and firmly pulling it forward.
5. Remove one screw (CBS, 3×6) under the control panel and seven screws (CBP, 3×12) securing the upper
housing to the lower housing.
6. Inserting tweezers from the bottom side of the lower housing, release two hooks mounting the upper
housing to the lower housing. Remove the upper housing by lifting it up.
R
EMINDER
When replacing the upper housing or printer cover, remove all labels and put them on the
replaced part in the same position.
Platen Knob
Tweezers
CBP Screws (3X12)
Tractor
Sheet Guide
CBS Screw (3X6)
Control Panel
Upper Housing
CBP Screw (3x12)
Tractor Friction Lever
Lower Housing
Hook
Hook

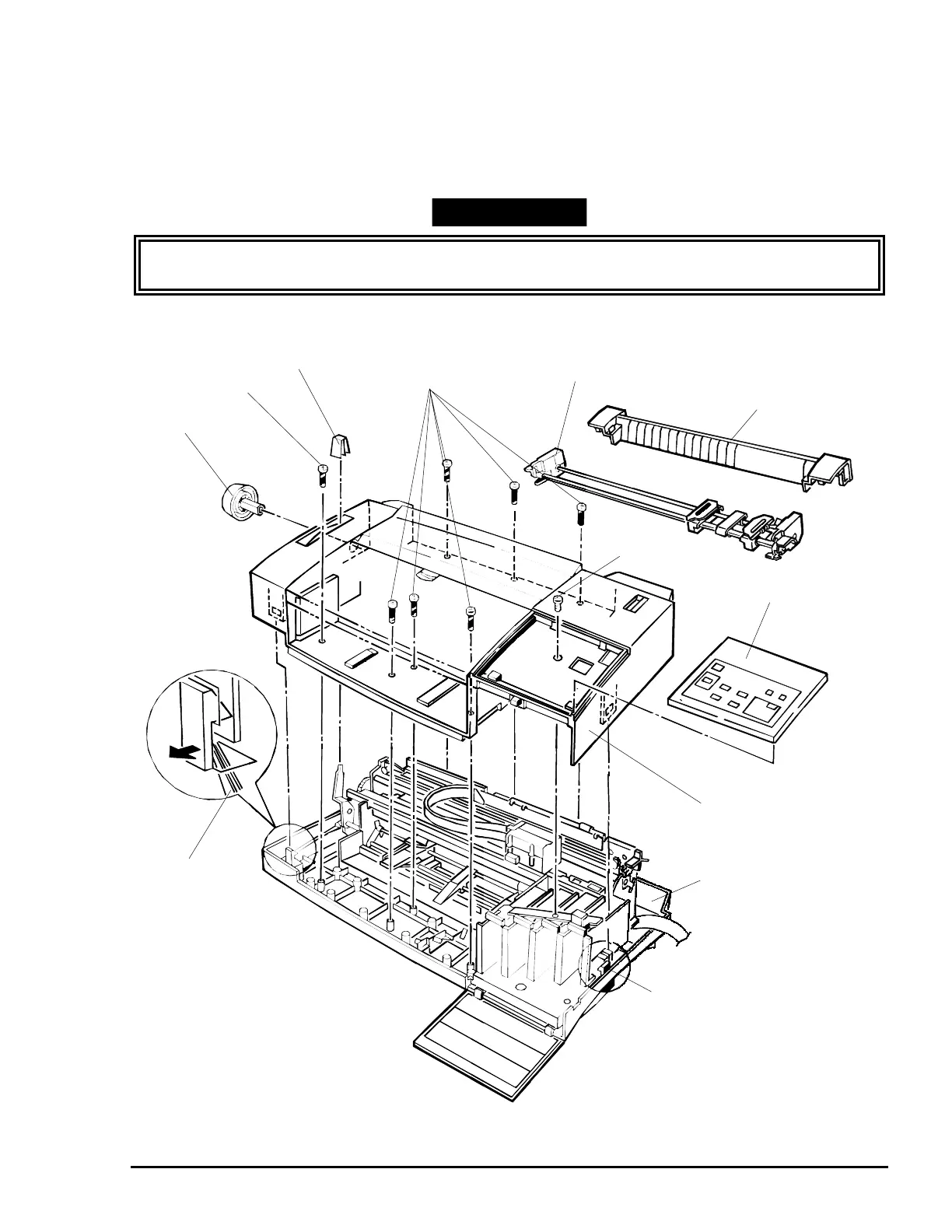

Figure 3-4. Upper Housing Removal

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
