Epson Stylus COLOR 3000 Service Manual

Product Description
EPSON Stylus Color 3000 Service Manual
1-24
1.5 Operation
This section describes the functions of each button on the control panel and LED printer status indicators.
Control Panel
The control panel for this printer consists of 8 non-locking pushbuttons, 1 locking pushbutton, and 13 LED
indicators. Refer to Figure 1-10.
Operate
Paper Out
Pause
5 Sec.
Reset
LF/FF
Load/Eject
Micro Adjust
Ink Out
Yellow
Magenta
Cyan
Black
Cleaning
Media Type
Plain Paper
360 dpi Ink Jet Printer
Photo Quality Ink Jet Paper
Photo Quality Glossy Film
Ink Jet Transparencies
Other Media Selection Off
3 Sec.
Cleaning
3 Sec.

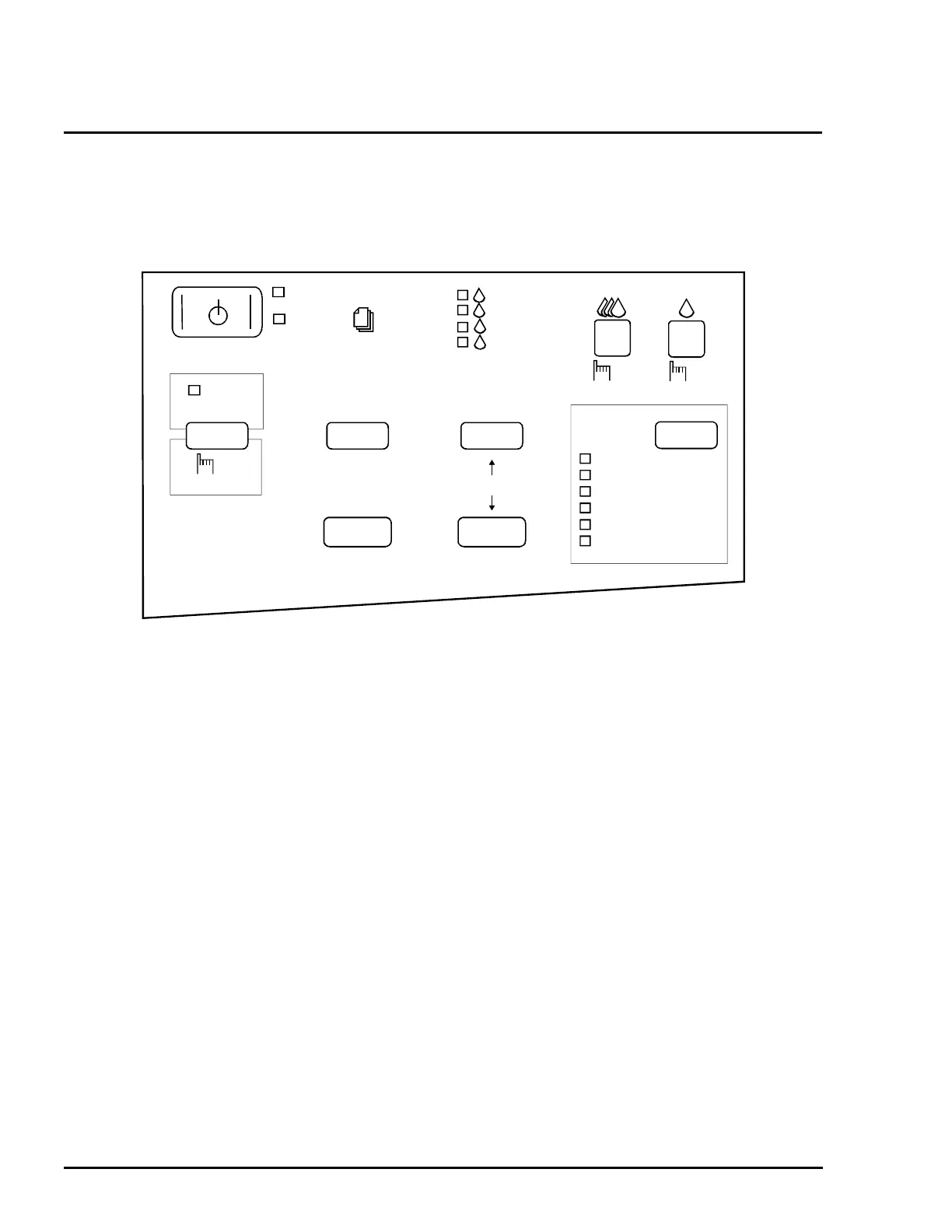

Figure 1-10. Control Panel

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
