EPSON Stylus Color 3000 Service Manual
2
-9
Ink System
The ink system for this printer is composed of the following parts:
 Ink cartridge
 Pump
 Capping mechanism
 Waste ink drain pads
 Wiping mechanism

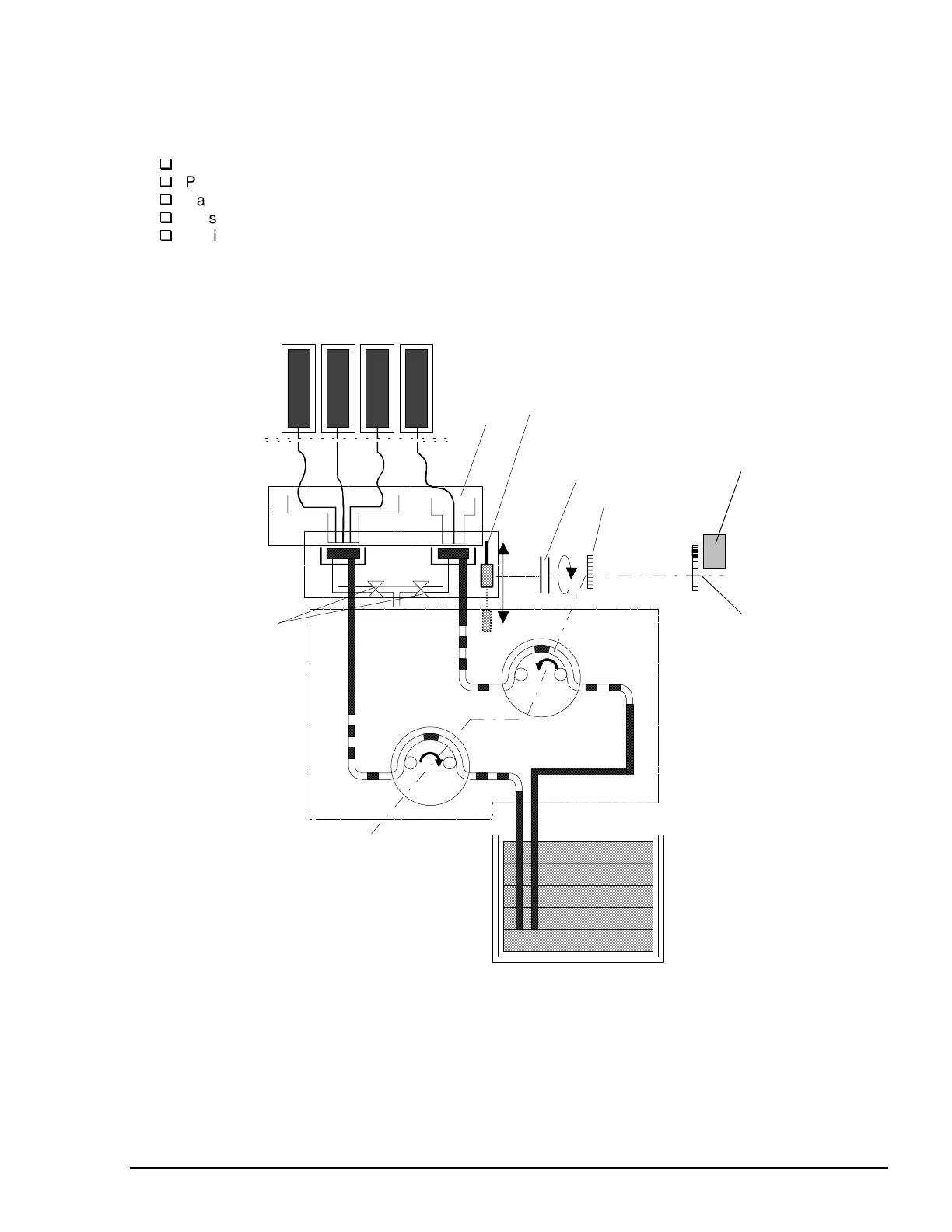

Figure 2-9 shows a flowchart of the ink system.
Ink Cartridges
Cleaner Head for
Black and Color Ink
Clutch Unit
Combination Gear
Gear
Pump
Pump 1
Pump 2
Air Valves
Waste Ink Drain Pads
Pump Motor
CR Unit
Figure 2-9. Ink System
