Epson Stylus COLOR 3000 Service Manual

Operating Principles
EPSON Stylus Color 3000 Service Manual
2-12
Wiping/CR Lock Mechanism
The wiping operation removes ink and dust that adhere to the nozzles. This occurs during the cleaning
sequence. When the pump motor rotates backward, torque sent via the head cleaner (wiper) drive gear and
clutch moves the head cleaner to the wiping position. The CR unit moves right and left to wipe the nozzle
surface against the head cleaner. When the wiping is complete, the pump motor rotates forward to move the
head cleaner back. One head cleaner is used for both the black and color printheads. The head cleaner also
functions as a CR lock mechanism. When printer power is off, it keeps the CR unit from shifting left (to the
printing side). The switch lever locks the CR at the right end by connecting it to the disengagement
mechanism. The CR unit remains in the capping position when transported.
CR
Head Cleaner
Head Cleaner Lever
Printhead
Pump Motor
Gear Train
Pump Gear/Clutch
Wiping Mechanism
Switch Lever
Disengagement
Mechanism
CR
Head Cleaner Lever
CR Lock Mechanism

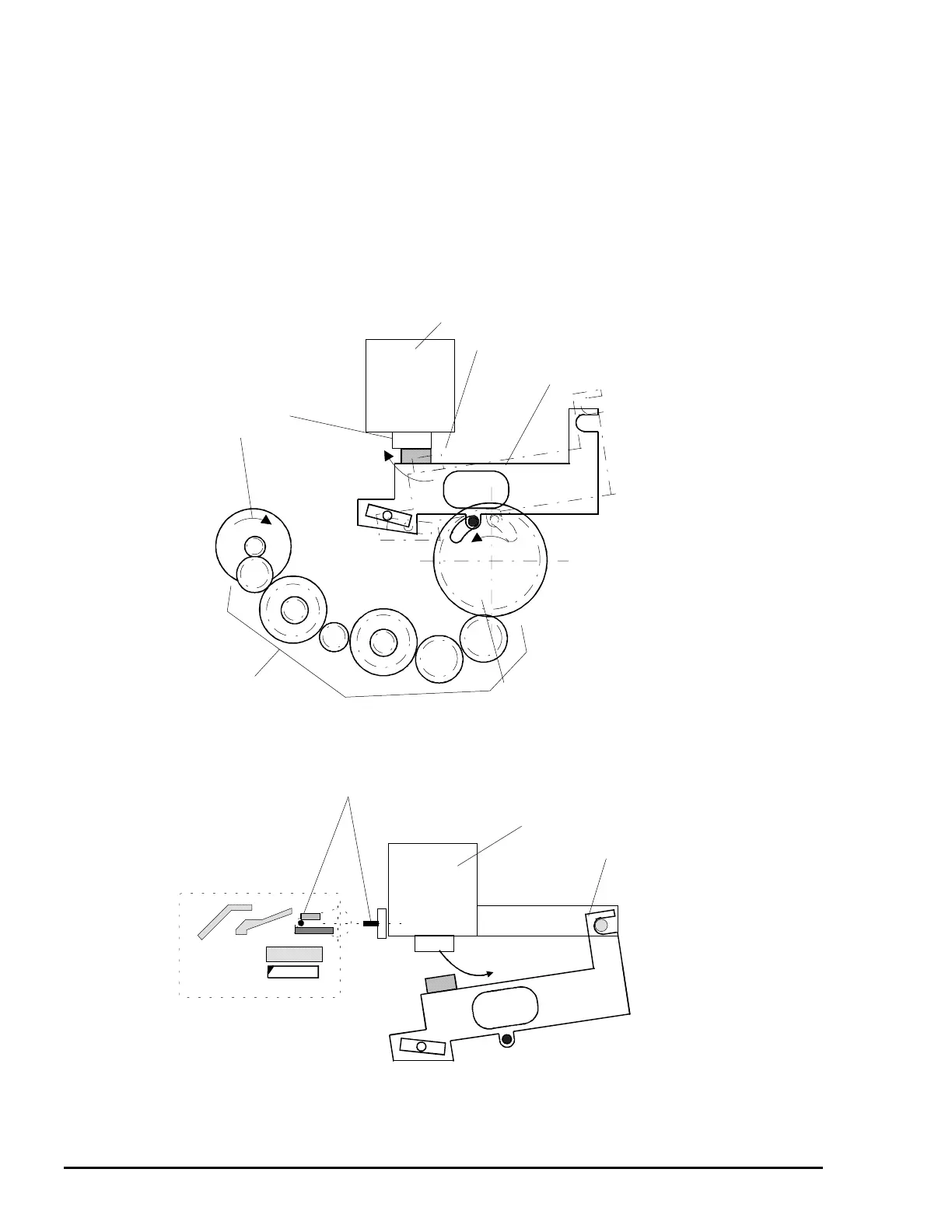

Figure 2-12
.
Wiping/Carriage Lock Mechanism

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
