Epson Stylus COLOR 3000 Service Manual

Disassembly and Assembly
3-26 EPSON Stylus Color 3000 Service Manual
ASF PW (Paper Width) Sensor Removal
1. Remove the upper housing (See page 3-4).
2. Remove the printer mechanism (See page 3-10).
3. Remove the edge guide (See page 3-10).
4. Using a screwdriver or other pointed tool, release the hook securing the ASF PW sensor cover to the left
edge guide. Then remove the ASF PW sensor cover by opening it in the two steps shown in Figure 3-24.
5. Remove the ASF PW sensor.
REMINDER

After placing the printer mechanism back on the lower housing, connect the ASF PW
sensor connector cable to the ASF PW sensor. Then attach the ASF PW sensor cover.

When mounting the ASF PW sensor, fit the actuator of the ASF PW sensor into the groove
on the ASF PW sensor sliding plate.

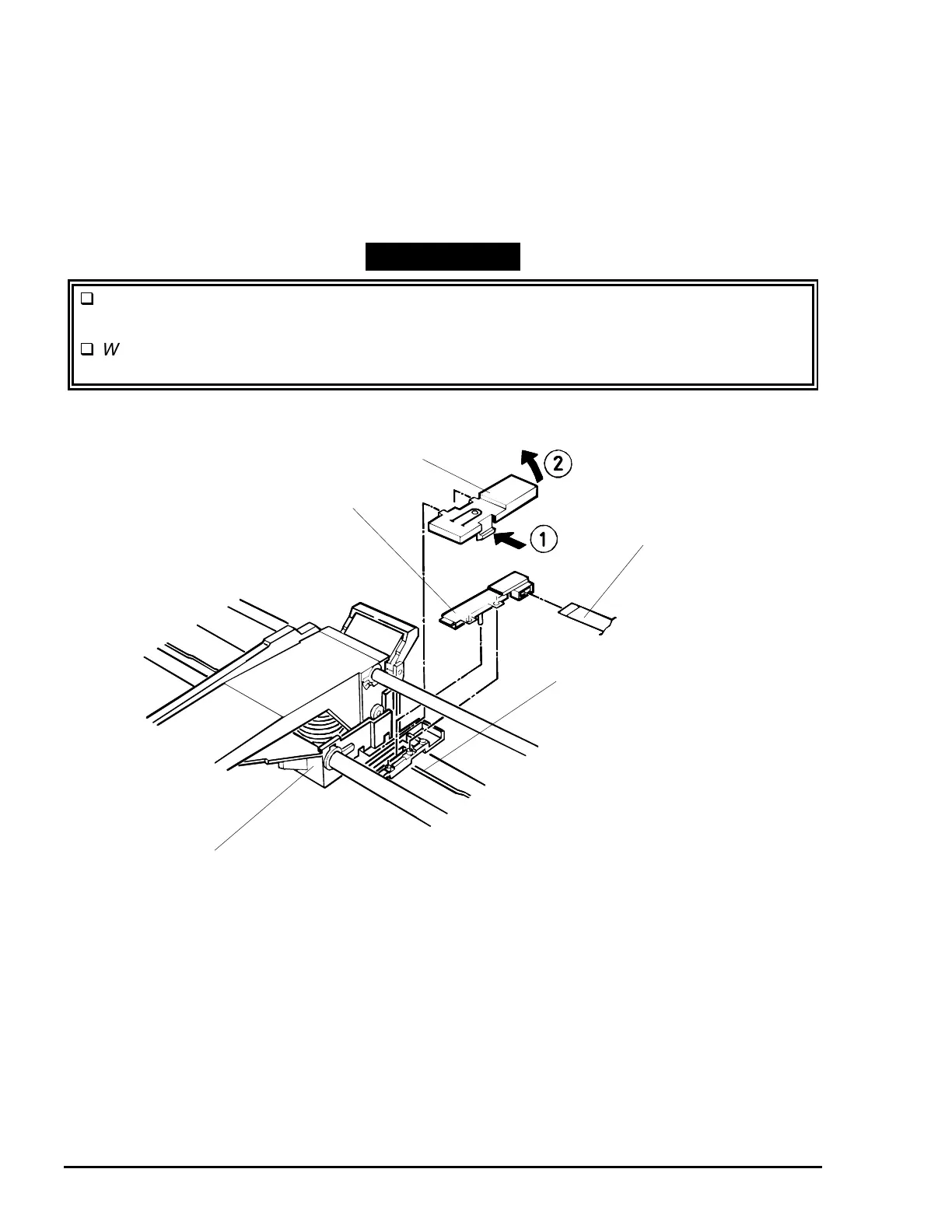

ASF PW Sensor Board Assembly
ASF PW Sensor Cover
Left Edge Guide
ASF PW Sensor Connector Cable
Groove on the Sliding Plate
Figure 3-24. ASF PW Sensor Removal

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
