EPSON Stylus Color 3000 Service Manual
3
-17
Pump Motor Removal
1. Remove the upper housing (See page 3-4).
2. Remove the printer mechanism. (See page 3-10).
3. Remove the CR motor (See page 3-17).
4. Remove the connector cable for the pump motor from the clamp attached to the printer mechanism.
5. Remove two screws (CBS, 3x6) securing the pump motor to the sub frame. Then remove the pump
motor.
CBS Screws (3×6)
Pump Motor
Sub Frame Assembly

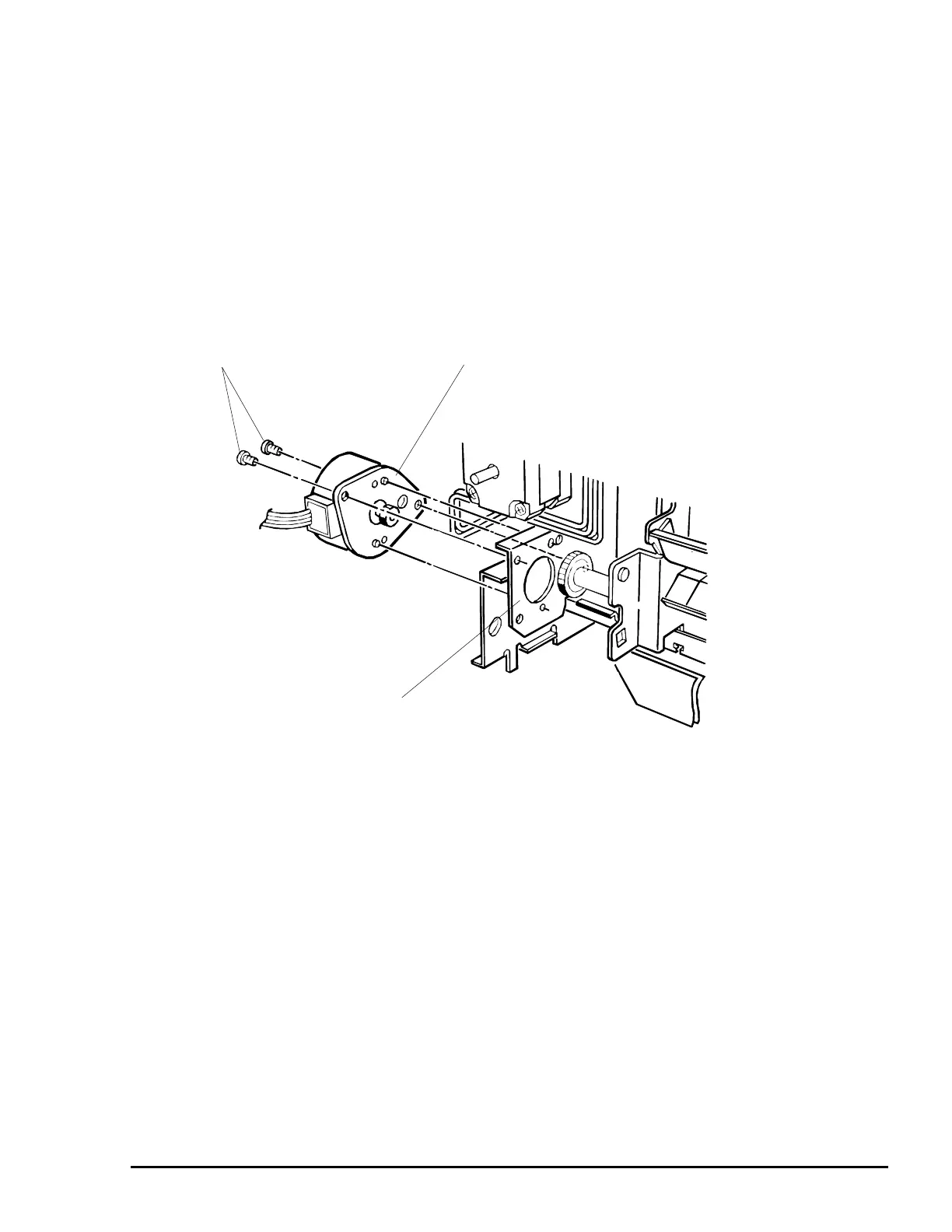

Figure 3-15. Pump Motor Removal
