Epson Stylus COLOR 3000 Service Manual

Disassembly and Assembly
3-22 EPSON Stylus Color 3000 Service Manual
Pump Removal
1. Remove the upper housing (See page 3-4).
2. Remove the printer mechanism (See page 3-10).
3. Remove the paper eject frame (See page 3-21).
4. Remove two screws (one CBS, 3×6 and one CBP, 3×8) securing the pump to the printer mechanism.
Then remove the pump.
REMINDER

When attaching the head cleaner to the pump, face the rubber side of the cleaner towards
the pump, as shown in Figure 3-20.

When installing the pump, place the tubes into the cutout first and then insert the sub waste
ink drain pads, setting the tubes between them.
CBS Screws (3×6)
Head Cleaner
Draining Pipe
ASF Transmission Frame
Sub Waste Ink Drain Pad
CBP Screw (3×8)
Right Main Frame
Pump
Head Cleaner Lever
(See CR Unit Removal, Step 6.)

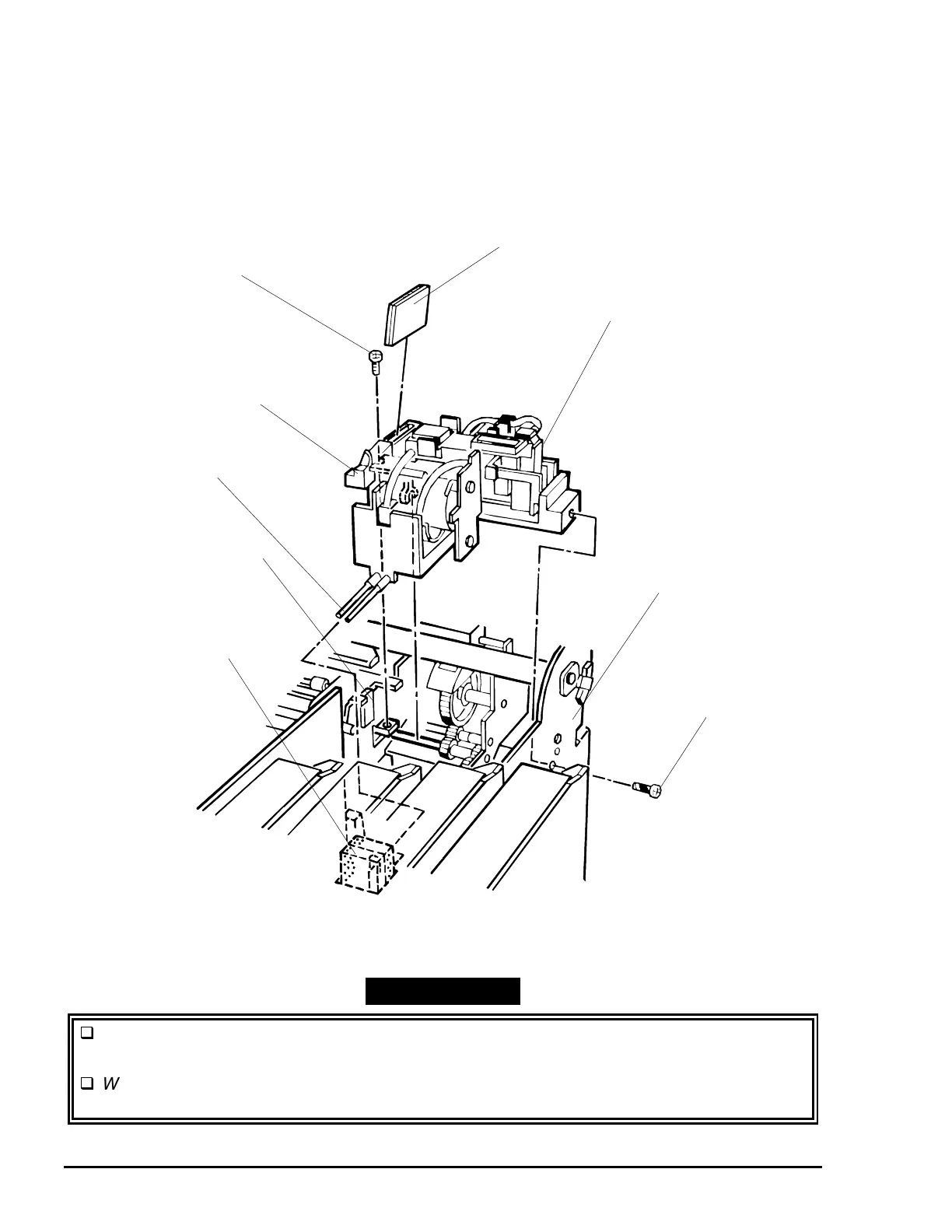

Figure 3-20. Pump Removal

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
