Epson Stylus COLOR 3000 Service Manual

EPSON Stylus COLOR 3000
EPSON Stylus Color 3000 Service Manual
3
-33
9. Remove one screw (CBP, 3×8) securing the paper eject drive to the left main frame.
10. Attach the knob to the PF roller shaft. Then hold down the trigger lever on the right end of the PF roller,
and turn the PF roller shaft until the edge guides don’t lift up any further.
11. Remove the paper eject drive by lifting up the front.
12. Remove the edge guide (See page 3-23).
13. Remove one E-ring at the left end of the paper feed shaft (See Figure 3-33).
14. Release the paper feed shaft bushing mounting the paper feed shaft to the left main frame.
15. Release the joint for the paper feed gear on the right end of the paper feed shaft and ASF transmission
gear in the middle frame. Then shift the paper feed shaft toward the left frame and remove it.
R
EMINDER

Engage the paper feed gear and gear 29 in the ASF gear set as shown in Figure 3-32.

Don’t touch the gear surface with your bare hands; this may damage the gear.
Paper Eject Drive
Left Main Frame
CBP Screw (3×8)
Trigger Lever
PF Roller
Paper Feed Shaft
Left Frame
Edge Guides

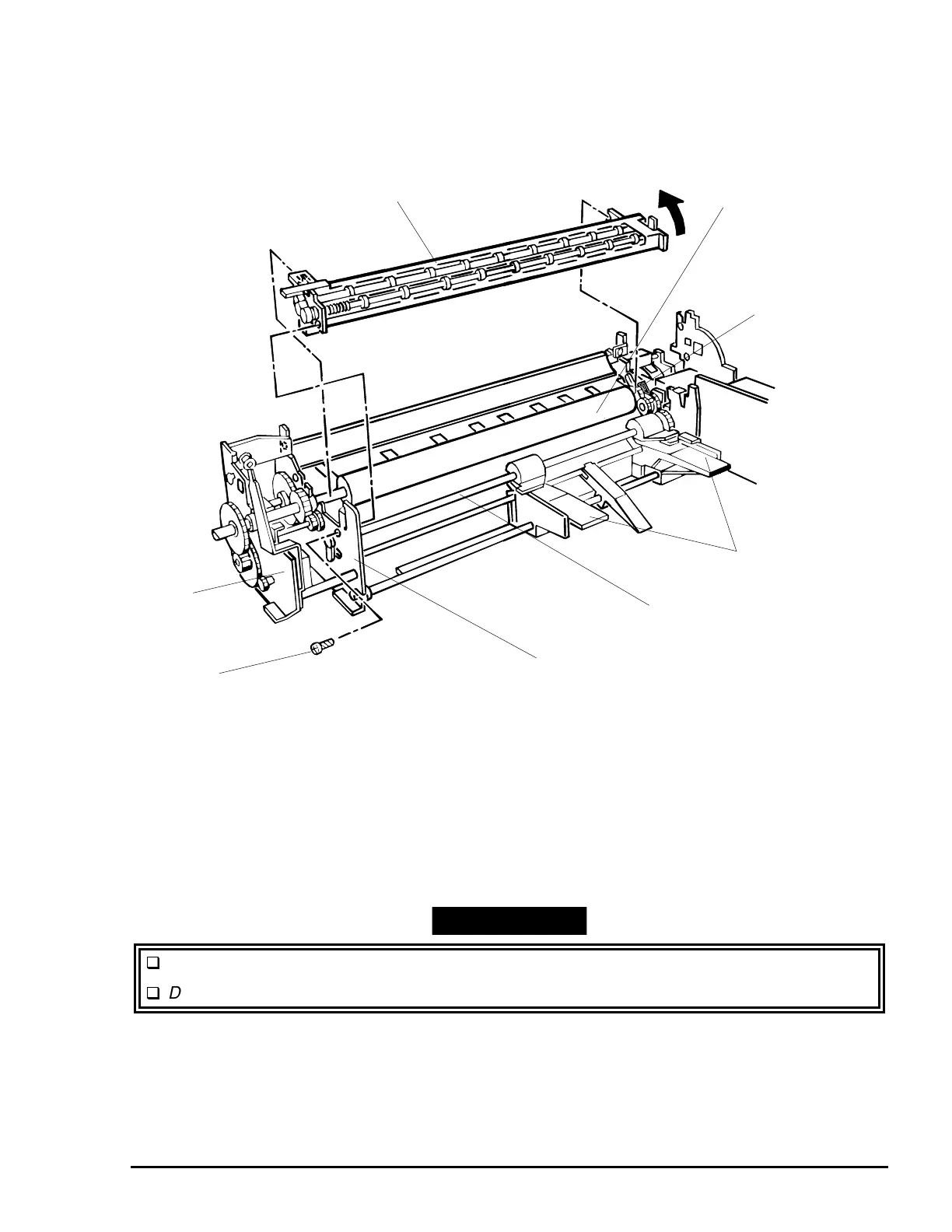

Figure 3-31. Paper Eject Drive Removal

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
