ECI Multi Functional Weighing Controller Operating Manual
Page 104
7.3.3 Optional Communication Menu
The menus related to the communication module inserted to slot 3 of the device are displayed under this
menu. If there is not any communication module, this menu is displayed under the name "Empty Slot".
7.3.3.1 Optional Serial Communication Menu
Following menus will appear if COM module is inserted to slot 3.

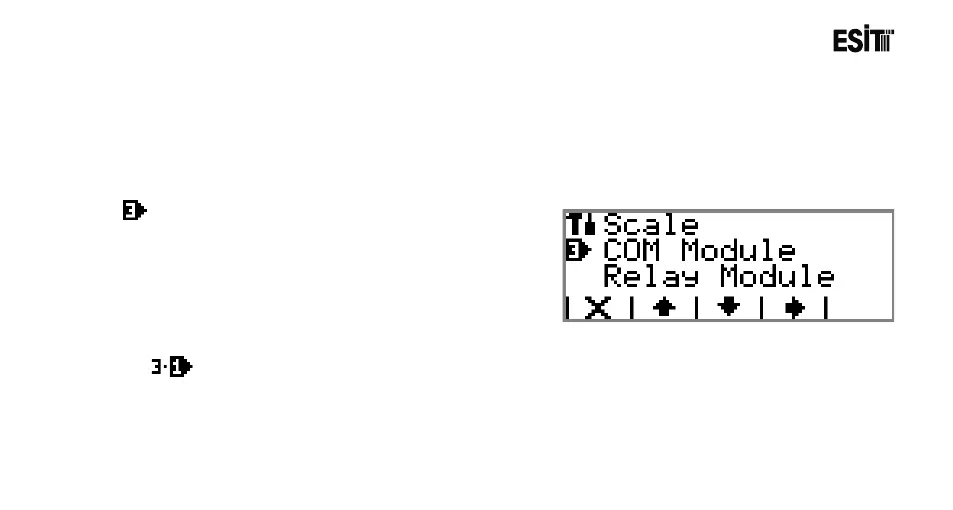

COM Module
This is the menu where the parameters of the COM module
are set forth.
Settings
This menu is an ordered type menu where the communication parameters are set forth. The sub-menus
are "Mode", "Baudrate", "Period" and "Modbus Mode" and "Modbus No".
