7.3.6 Optional Expansion Menu
The menus related to the expansion module inserted to slot 6 of the device are displayed. EXP Module or
BCD Module can be inserted to this slot. If there is not any expansion module, this menu is displayed under
the name "Empty Slot".
7.3.6.1 Optional BCD Module Menu

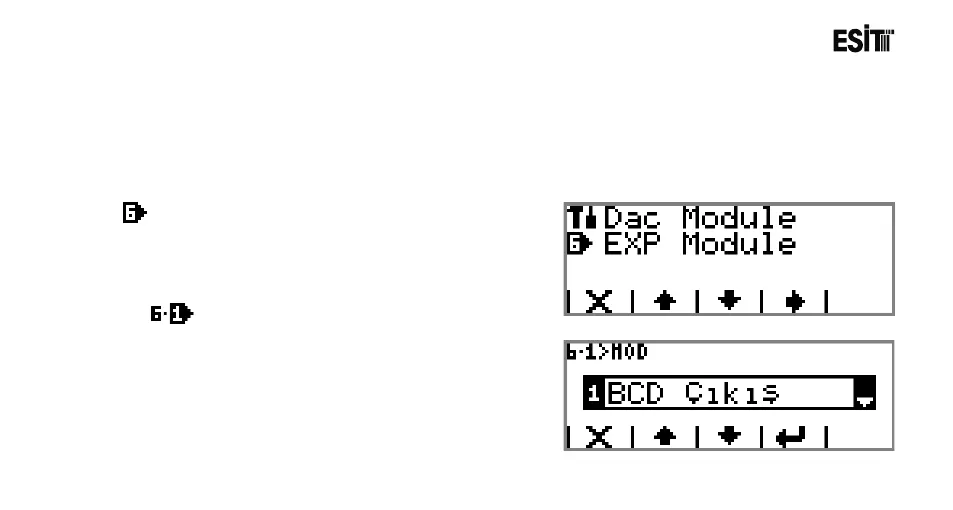

Following menus will appear if BCD module is inserted to slot 6.
BCD Module
This is the menu where the parameters of the BDC module
are set forth.
Mode
1) BCD Output: BCD (Binary Coded Decimal) is the
binary coding of the numbers in Decimal number
system 4
1/2
digit (39999) output data is coded.
2) Binary 2’ All: BINARY'2 is the integrated output in
binary number system. 1 sign + 19 bit (±524.287)
output data is provided.
3) BinaryAbsolute: It is the absolute output coded in
To Next Page
