ECI Multi Functional Weighing Controller Operating Manual
Page 167
10.2 Slot4 (Optional Input/Output Menu):
E-MDL-RY or E-MDL-DAC modules can be connected to Slot4. Detailed information about these modules are
given below.
10.2.1 E-MDL-RLY (Relay Module):
This is an input -output module with 4 digital inputs (Optically insulated 12-24 V DC) and 4 relay outputs
(250V/2A).

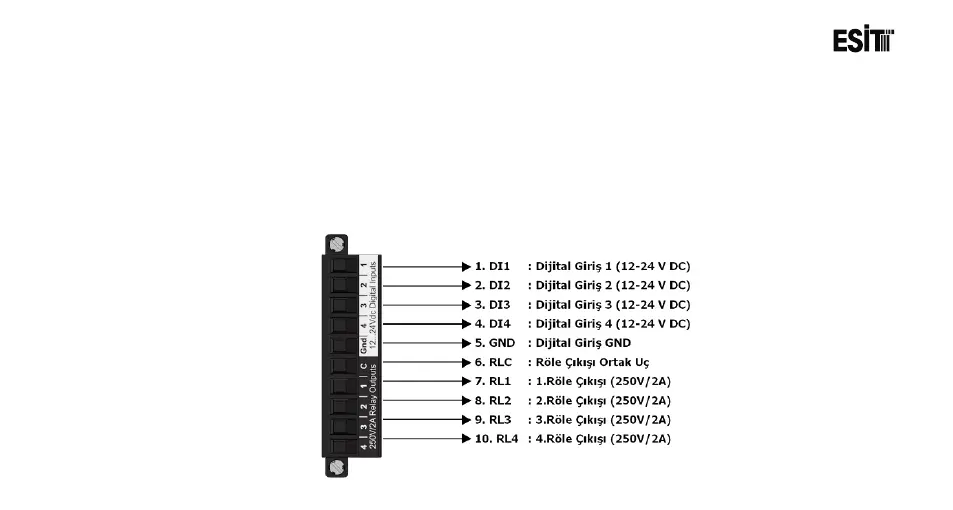

10.2.1.1 Terminal Explanations
