ESIT ECI - Supply Connection; Communication Connections

ECI Multi Functional Weighing Controller Operating Manual
Page 26

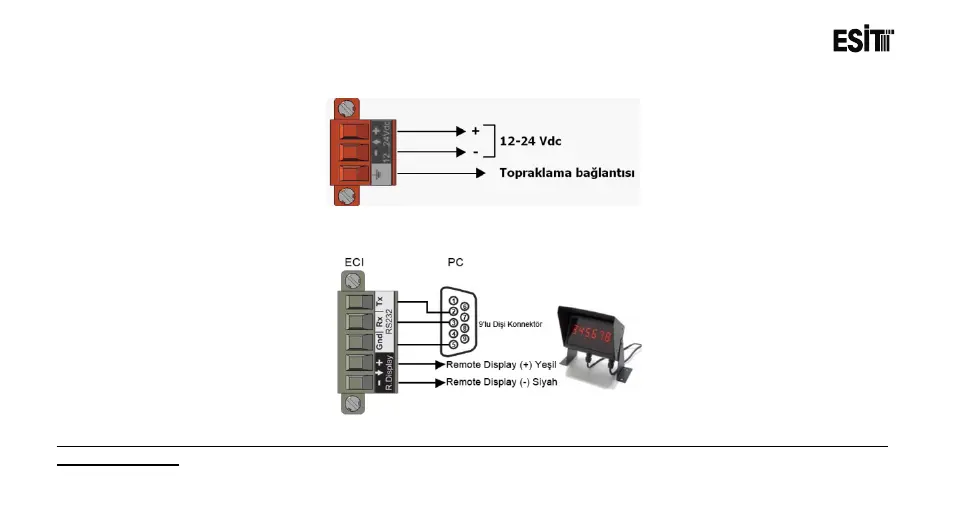

5.1.1.1 Supply Connection
5.1.1.2 Communication Connections
Note: When the “R.Display” output is used with Esit brand Remote displays, red and White cables of the Display must
be short circuited
