ESIT ECI - E-MDL-DAC (Analogue Output Module)

ECI Multi Functional Weighing Controller Operating Manual
Page 169
10.2.2 E-MDL-DAC (Analogue Output Module):
This is a module with 1 analogue output (4-20 mA or 0-10 V), 2 Digital inputs (12-24 V DC) and 1 opto-coupler
output (maximum 100 mA).

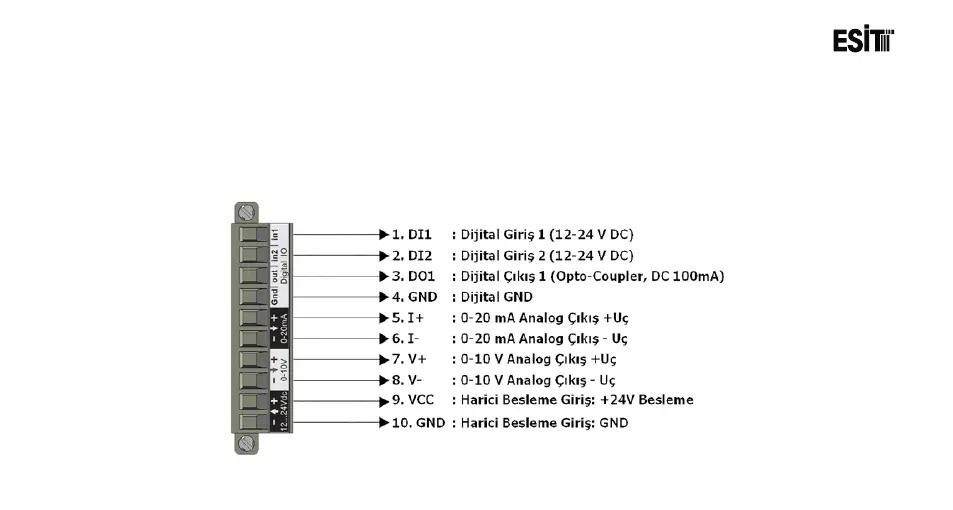

10.2.2.1 Terminal Explanations
