ECI Multi Functional Weighing Controller Operating Manual
Page 117

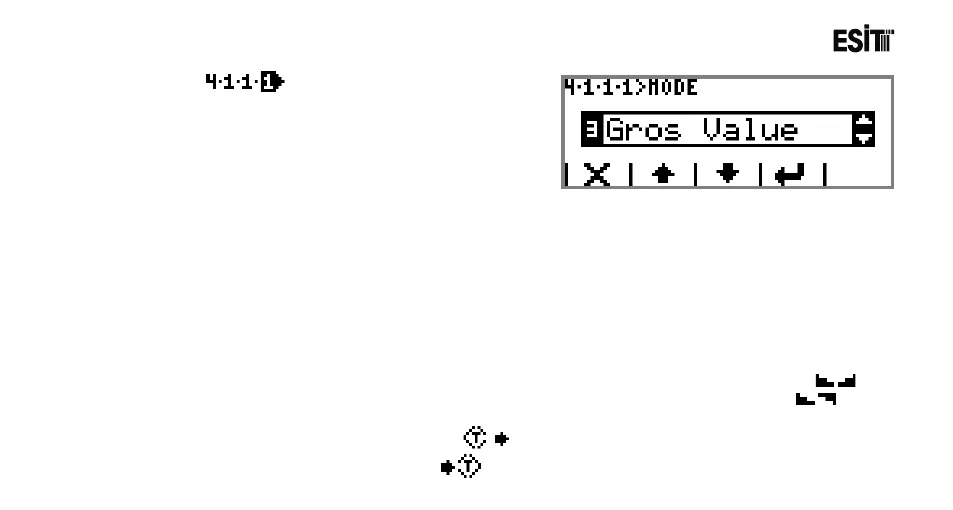

Mode
It is the relay operation mode selection. The
options are;
1) Inactive: The relay is not active.
2) Net Value: Operates according to the NET
value. Taring affects the operation of the relay.
3) Gross Value: Operates according to the
gross weight. Relay set values function independent from the Tare.
4) Ready Signal: Relay contacts are short circuit as long as the device is in operation.
5) Error Signal: In the occurrence of any of the following error situations relay contacts are short
circuit , but open circuit in other situations.
Error situations:
LoadCellError (error of the sensor connected to the load cell)
Maximum Load! (The situation where the measured values exceed the Maximum Capacity)
ADC Data Error! (Load Cell Module Error)
No Load Cell Module! (Load Cell Module could not be recognized error)
6) Stagnancy: If the change in the measurement result is less than a scale interval (if
symbol is displayed on the screen), the relay contacts are short circuit otherwise (if is
displayed on the screen) open circuit.
7) Tare Signal: While taring ( when symbol is displayed), relay contacts are short circuit,
when the tare is removed (when symbol is displayed ), the relay contacts are open circuit.
