ECI Multi Functional Weighing Controller Operating Manual
Page 110

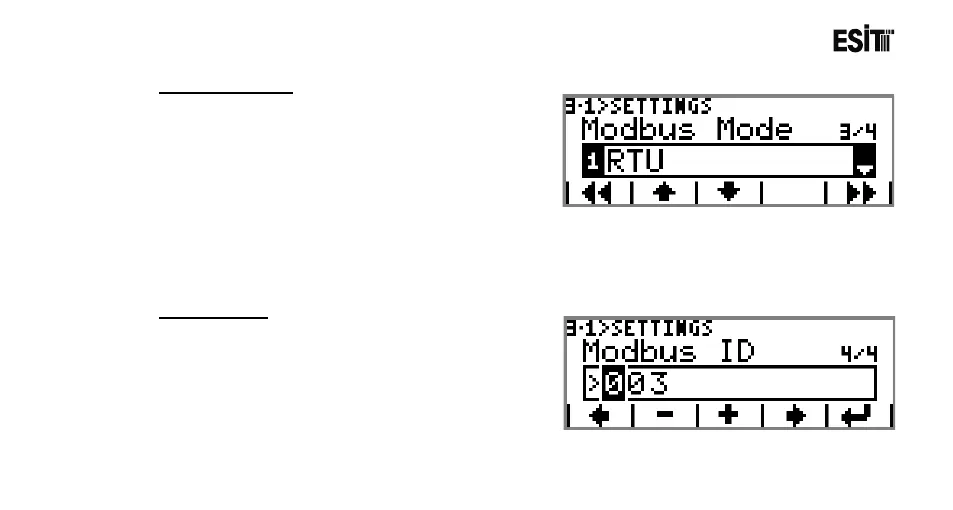

Modbus Mode
It is the Modbus communication mode. The options
are;
1) RTU: Each byte data to be sent is meaningful and
the transmission is made by coding with CRC control
byte.
2) ASCII: Each byte data to be sent is sent as two
separate bytes and in coding that can be displayed as
Ascii. For example; for 26 (hex:1A) decimal data transmission, the characters "1" and "A" are set. Thus
the communication speed is slower than RTU.
Modbus No
The identity number to be used by the device during
Modbus communication.
