ESIT ECI - Six (6) Cable Load Cell Connection

ECI Multi Functional Weighing Controller Operating Manual
Page 29

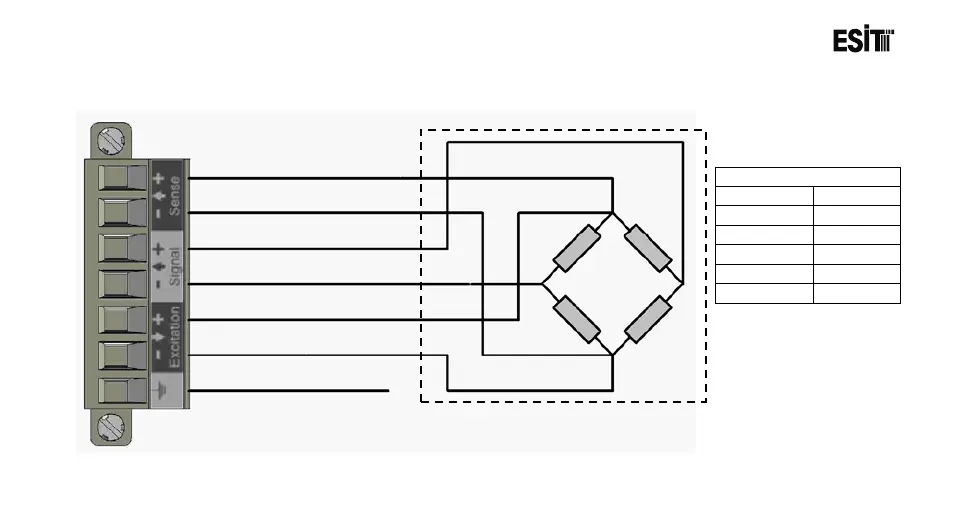

5.1.2.2 Six (6) Cable Load Cell Connection
Esit Colours
Sense +
Blue
Sense -
Orange
Out +
White
Out -
Red
Supply +
Green
Supply -
Black
Grounding
Sense +
Sense -
Out +
Out -
Supply +
Supply -
