ESIT ECI - Slot3 (Optional Communication Slot); E-MDL-COM (Serial Communication Module)

ECI Multi Functional Weighing Controller Operating Manual
Page 162
ECI is a device with Smart "Plug-Play" Module structure and optional modules can be changed easily thanks to this
feature.
10.1 Slot3 (Optional Communication Slot) :
10.1.1 E-MDL-COM (Serial Communication Module):
This module is an galvanic insulated serial communication module. RS232/R485 or RS422 communication
mode can be selected with the selection switch on it. Maximum Baudrate is 115200bps.
Note: Before making the connections check “RS232 & RS485”-“RS422” Selection Switch of the respective module.
10 Annex 1: Optional Modules

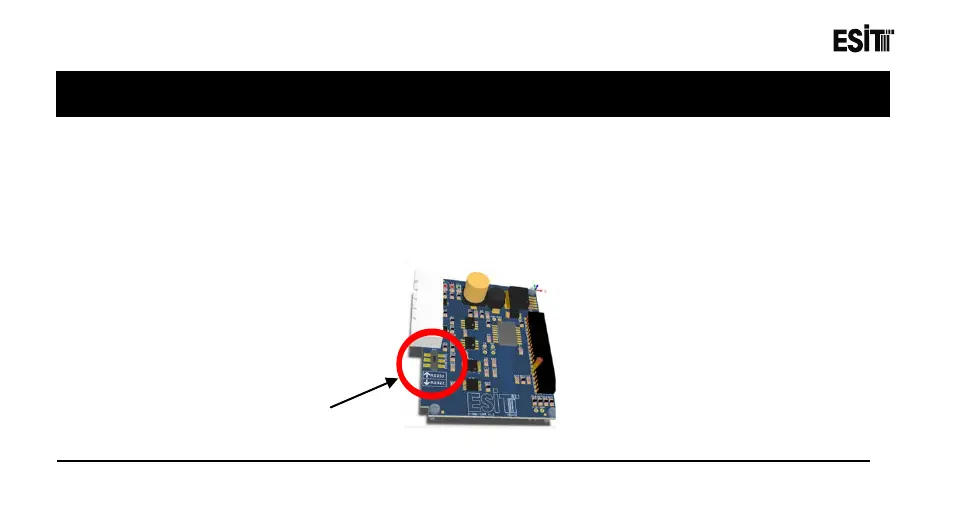

“RS232 & RS485”-“RS422” Selection Switch
