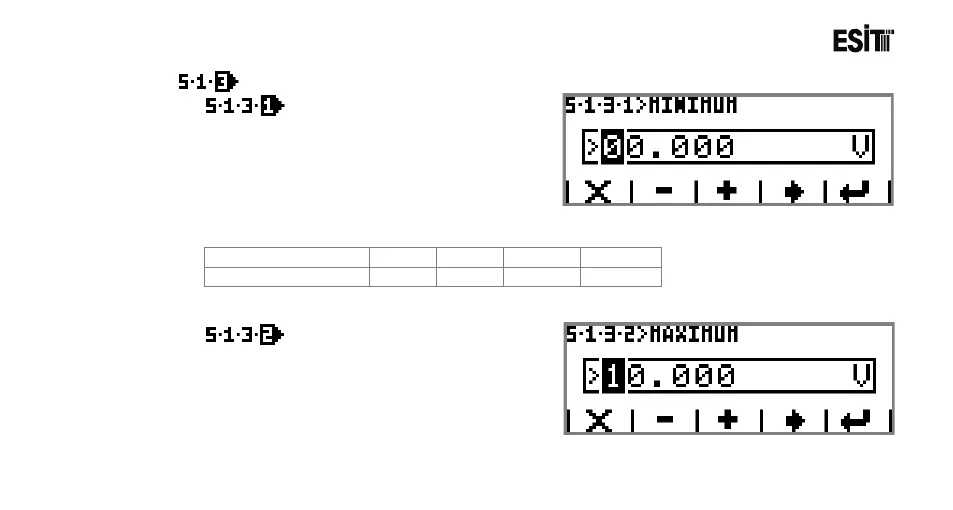

Volt.Ref
Minimum:
It is the start value of the Analogue Output
For example if it is desired that the Analogue
output voltage varies between 0 V and 10 V,
the value 0 V is entered here.
If it is desired to use current (0-20mA) output instead of the voltage (0-10V) output, the current
values corresponding to the voltage output are as follows.
Voltage Output
0Volt
2Volt
5Volt
10Volt
Current Output
0mA
4mA
10mA
20mA
Maximum:
It is the end value of the Analogue Output.
For example if it is desired that the Analogue
output voltage varies between 0 V and 10 V,
the value 10 V is entered here.
