ECI Multi Functional Weighing Controller Operating Manual
Page 132
Service

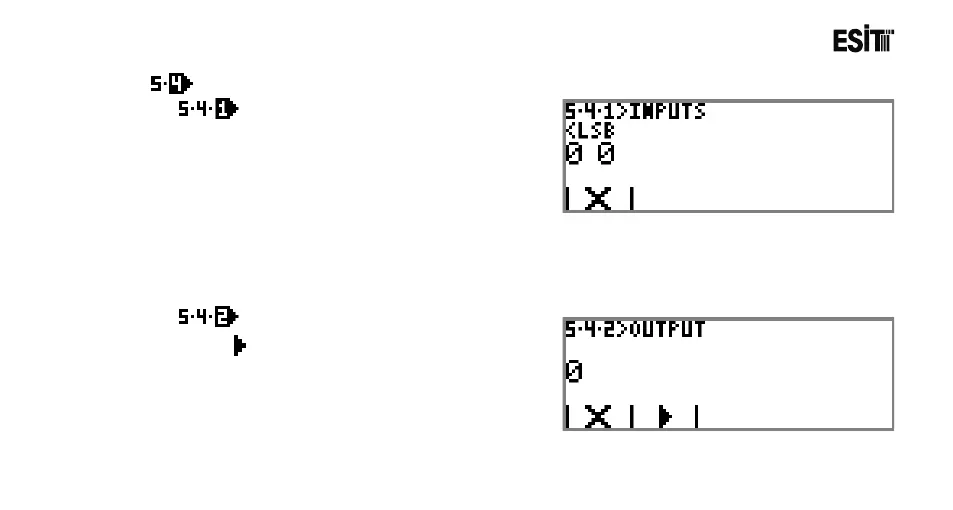

Inputs
Real time status of the inputs can be monitored
from this menu.The inputs that are applied 12-24 V
DC are displayed as 1 and other are displayed as
0.
Outputs
When key is pressed in this menu, the output
is periodically activated in order to control it. When
the output is active 1, otherwise 0 is displayed on
the screen.
