Communication
Serial Out
Contains the terminal serial out settings. This menu is an ordered type menu. Sub-menus are Mode
and Period. It functions differently in Indication, Batching and Filling programs. Explanation is made
below for each program
Indication Program
Mode

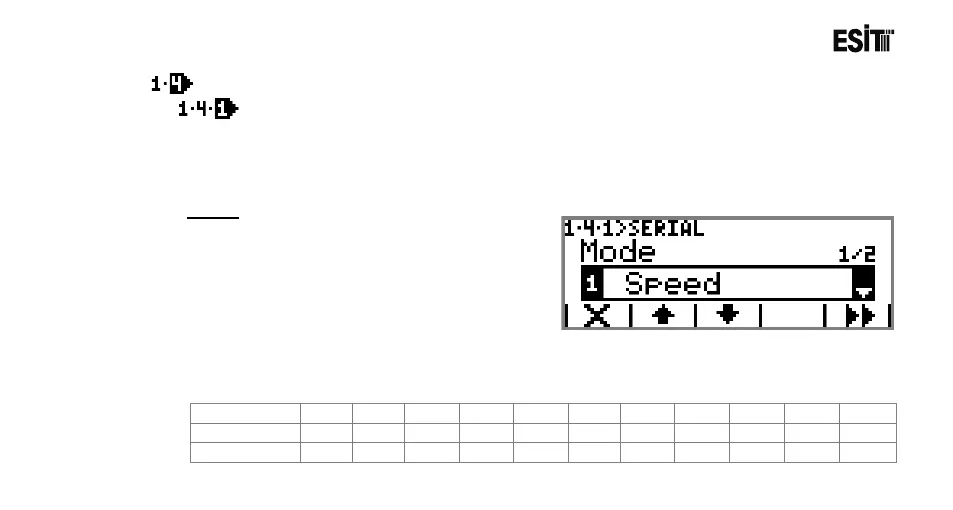

It is the communication type selection. The
options are;
1) Speed: Net weight information is sent
continuously.
(Baudrate is 115200bps)
For example;
The screen value of "2148.0kg" is sent as follows.
Character
‘ ‘
‘ ‘
‘ ‘
‘ ‘
‘ 2‘
‘ 1‘
‘ 4‘
‘ 8‘
‘.’
‘ 0‘
CR
Ascii
32
32
32
32
50
49
52
56
46
48
13
Hex
20
20
20
20
32
31
34
38
2E
30
0D
