Evolis Avansia Service Manual

Service Manual_AVA1_ENG-20220922_I 106
Same settings exist for both card side Adjustment >> Position >> Color Shift HRZ >> Shift HRZ
Back >> Print Test D-B. Each side should be set by application of the following steps.
Note that exists an auto color shifting adjustment (Image Setup >> Color Shifting).
It is advised to start calibration by using this option, hence set each manual color shifting option to 0.

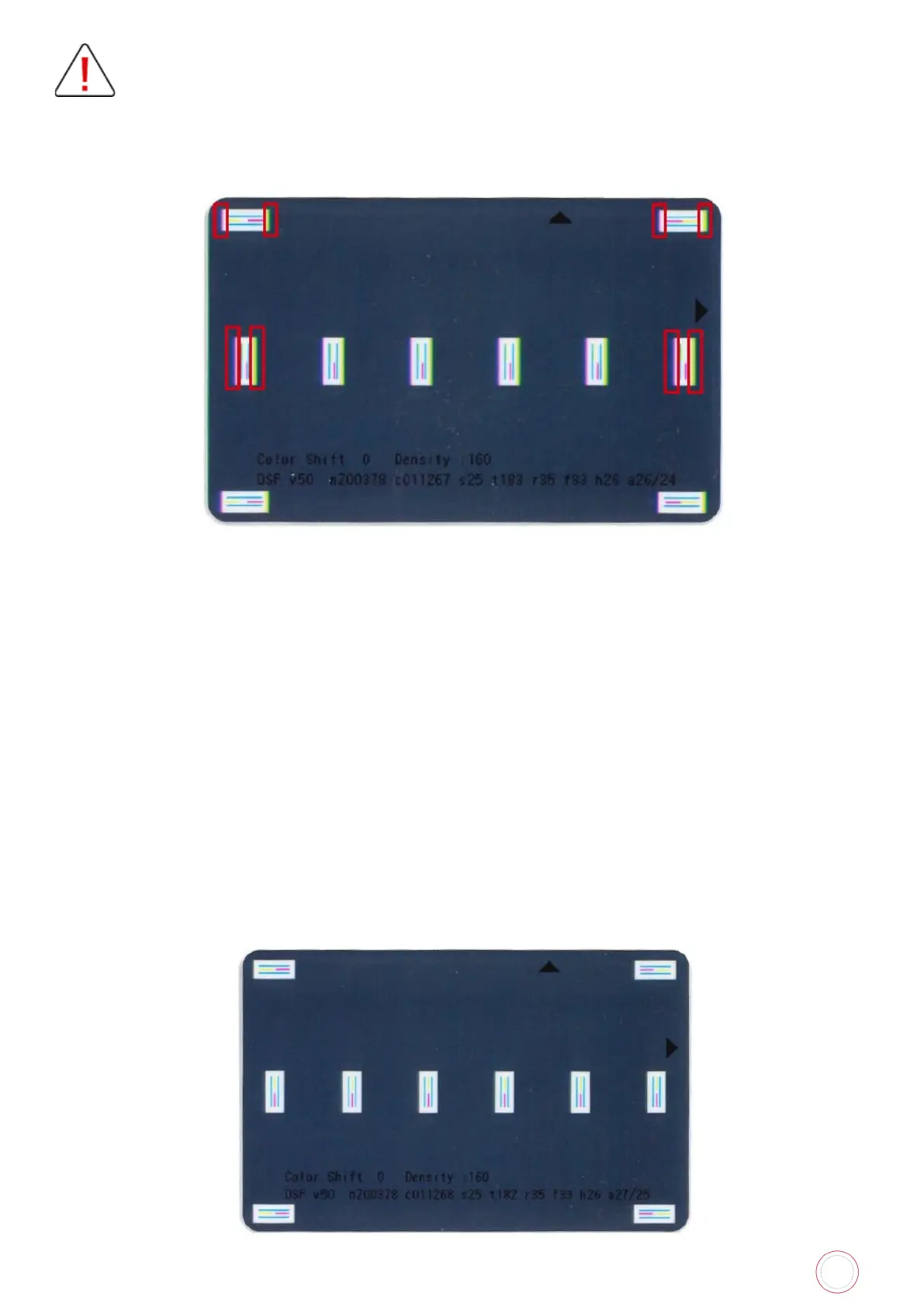

On this example, we can notice magenta on left hand side of the areas and yellow on right hand side of
the areas. Also, the 2 Yellow and Magenta short lines are not lined up as it is supposed to.
On this example:
- Magenta panel shift towards right hand side => decrease M Shift Hrz value
- Yellow panel shifts towards left hand side => increase Y Shift Hrz value.
As same settings are available for both card sides, possible settings are the following:
- Y Shift Hrz-F sets Yellow panel position for card front
- M Shift Hrz-F sets Magenta panel position for card front
- C Shift Hrz-F sets Cyan panel position for card front
- Y Shift Hrz-B sets Yellow panel position for card back
- M Shift Hrz-B sets Magenta panel position for card back
- C Shift Hrz-B sets Cyan panel position for card back
Once fixed, Test card should be as following:
