Evolis Avansia Service Manual

Service Manual_AVA1_ENG-20220922_I 232
Color shift: Adjustment

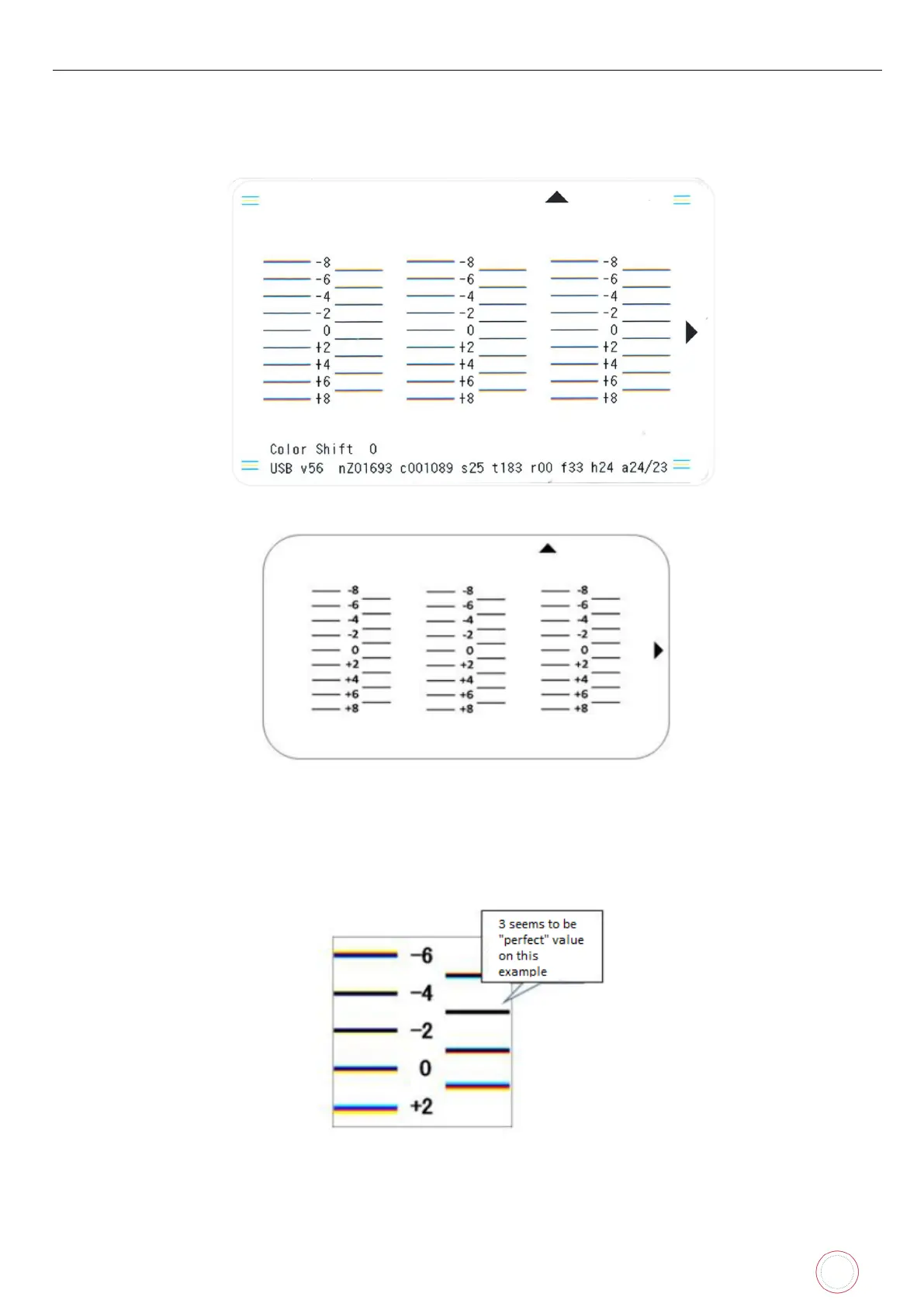

1. Vertical color shifting – Print Test U
The following card can be printed from LCD menu: Adjustment >> Position >> Print Test U.
This card is used to check vertical color shifting. Here is how to use it.
Printed card shows 3 columns of lines printed with each panel in order to detect shifting from a panel to
another.
Check card and seek for the lines where black print covers exactly color print in each column.
If we zoom on previous example, we could notice:
Once the “most perfect” black line identified on the pattern, value of the “perfect” line can then be applied
as Color vertical shifting setting value: (Adjustment >> Position >> Color Shift VTC).

Evolis Avansia Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Polycarbonate, PVC, PVC Composite
Print technology	Dye-sublimation/Resin Thermal transfer
Print speed (color)	144 card/h
Card thickness (min)	0.76 mm
Duplex print speed (color)	96 card/h
Display	LCD
Lamination	-
Certification	CE, FCC, UL, IEC RoHS
Product color	Black, White
Internal memory	64 MB
Cable lock slot type	Kensington
Total input capacity	250 sheets
Wi-Fi	No
Security algorithms	IPSEC
Ethernet interface type	Fast Ethernet
Bundled software	cardPresso XXS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	297 mm
Width	340 mm
Height	436 mm
Weight	20000 g
