Service Manual_AVA1_ENG-20220922_I 110

Step 1 – REAR BLACK COVER – S10204

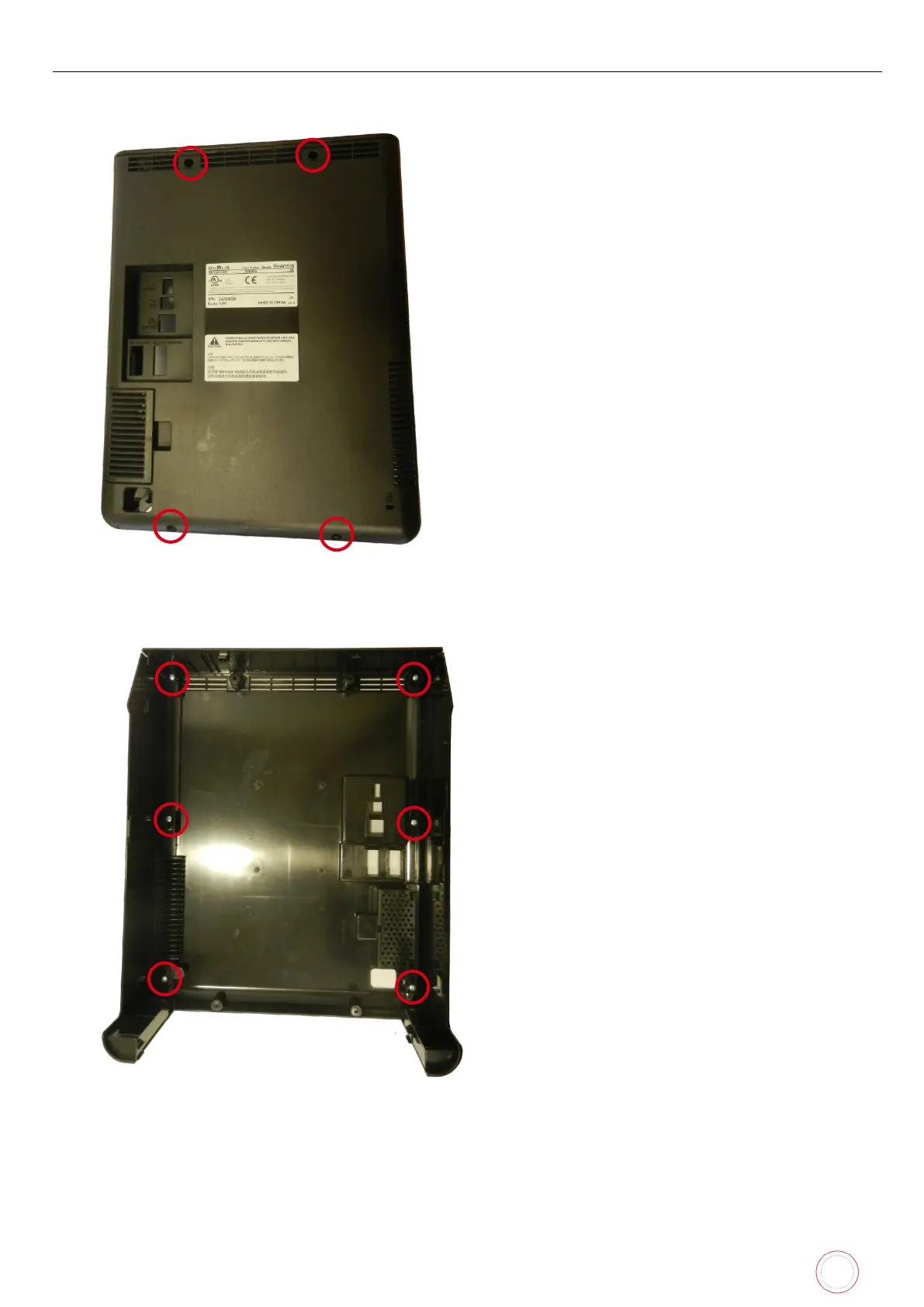

1. Remove the four screws.

2. Remove the six screws.

3. Put the new rear black cover back and carry out the steps in reverse.
