Evolis Avansia Service Manual

Service Manual_AVA1_ENG-20220922_I 15
Image printing process
Primary Transfer Feed Roller (Platen Roller)
Overview
Presses the Ink Ribbon and Transfer Film against the Printhead.
Control description
The up and down operation is controlled by the Platen Lift Motor (DM5).
In addition to the Primary Transfer Feed Roller (Platen Roller), the Platen Lift Motor (DM5) also
controls the up and down movement of the Film Nip Roller.

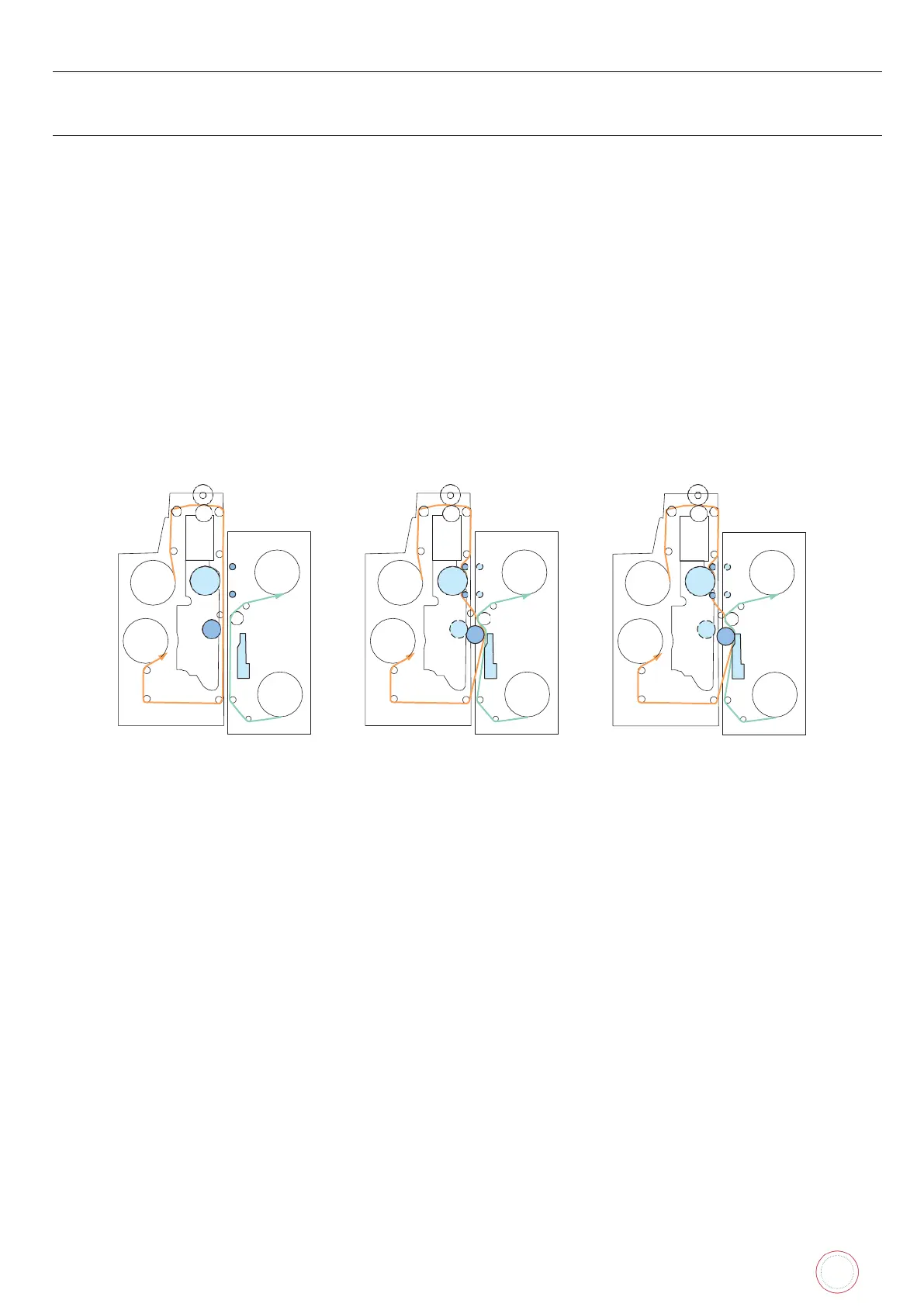

1. Up position: Primary Transfer Roller (Platen Roller) upward (release (uppermost)), Film Nip Roller
upward (release).
2. Home position: Primary Transfer Roller (Platen Roller) upward (release (intermediate)), Film Nip
Roller downward (nip).
3. Down position: Primary Transfer Roller (Platen Roller) downward (pressure), Film Nip Roller
downward (nip).
[1] [2] [3]

Evolis Avansia Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Polycarbonate, PVC, PVC Composite
Print technology	Dye-sublimation/Resin Thermal transfer
Print speed (color)	144 card/h
Card thickness (min)	0.76 mm
Duplex print speed (color)	96 card/h
Display	LCD
Lamination	-
Certification	CE, FCC, UL, IEC RoHS
Product color	Black, White
Internal memory	64 MB
Cable lock slot type	Kensington
Total input capacity	250 sheets
Wi-Fi	No
Security algorithms	IPSEC
Ethernet interface type	Fast Ethernet
Bundled software	cardPresso XXS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	297 mm
Width	340 mm
Height	436 mm
Weight	20000 g
