Evolis Avansia Service Manual

Service Manual_AVA1_ENG-20220922_I 12
GENERAL OUTLINE
Overall Explanation Basic specifications
For the basic specifications of this printer, refer to the “User Guide Avansia”.

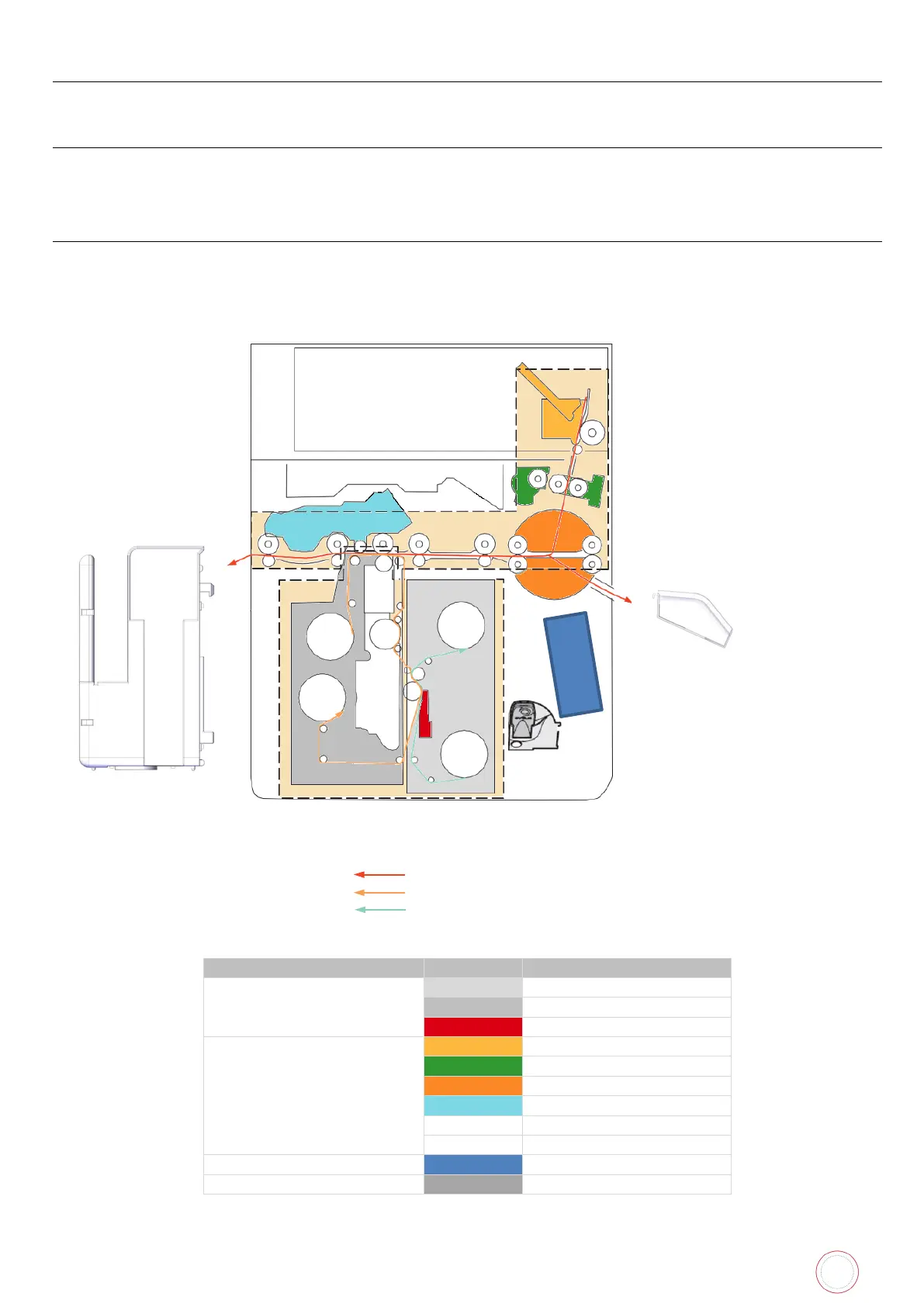

Mechanism components and functions
This printer consists of a primary transferring unit, secondary transferring unit, de-curling unit, card
transferring unit, card feeder unit, cleaning unit, flip section, card stacker unit, and a unit for mounting
optional parts.
Card flow
Transfer Film
Ink Ribbon
Transfert unit
Unit color
Name
Primary transfer unit
8
Ink ribbon cassette
9
Transfer film cassette
10
Print head
Secondary transfer unit
1
Card feeder
2
Cleaning rollers
3
Flip over
4
Decurl unit
5
Card stacker
6
Reject box
Optional unit
7
Optional parts
11
RFID Key
Primary transfer unit
Secondary transfer unit
1
2
3
4
5
6
7
9
8
10
11

Evolis Avansia Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Polycarbonate, PVC, PVC Composite
Print technology	Dye-sublimation/Resin Thermal transfer
Print speed (color)	144 card/h
Card thickness (min)	0.76 mm
Duplex print speed (color)	96 card/h
Display	LCD
Lamination	-
Certification	CE, FCC, UL, IEC RoHS
Product color	Black, White
Internal memory	64 MB
Cable lock slot type	Kensington
Total input capacity	250 sheets
Wi-Fi	No
Security algorithms	IPSEC
Ethernet interface type	Fast Ethernet
Bundled software	cardPresso XXS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	297 mm
Width	340 mm
Height	436 mm
Weight	20000 g
