Service Manual_AVA1_ENG-20220922_I 249

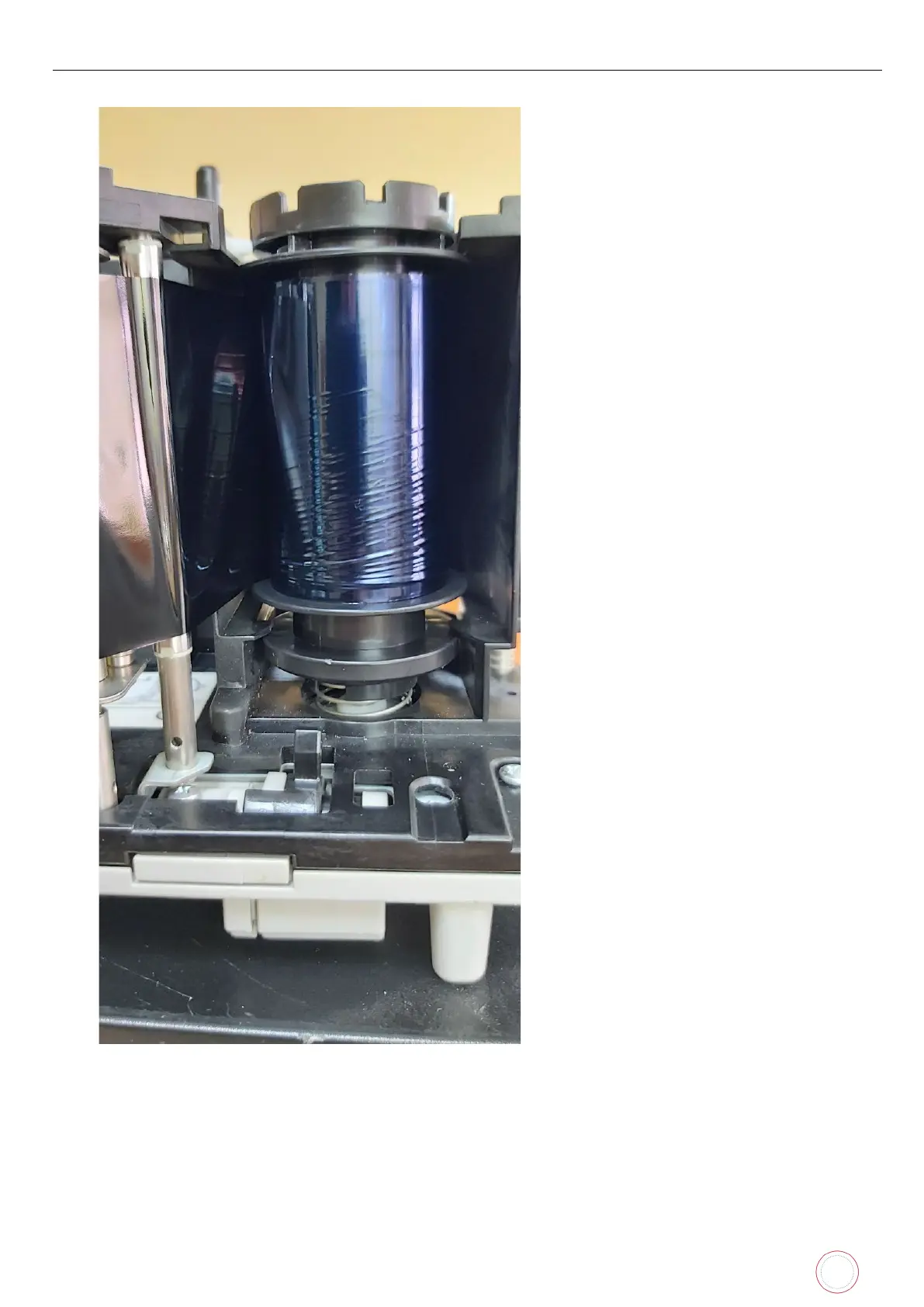

Color wrinkles: Creased ribbon

Ribbon crease is generated by too much heat applied during primary transfer.

This is more often noticed when printing dense images. Printhead heats up high and ribbon get loosened

(stretched) by heat excess.
