Evolis Avansia Service Manual

Service Manual_AVA1_ENG-20220922_I 19

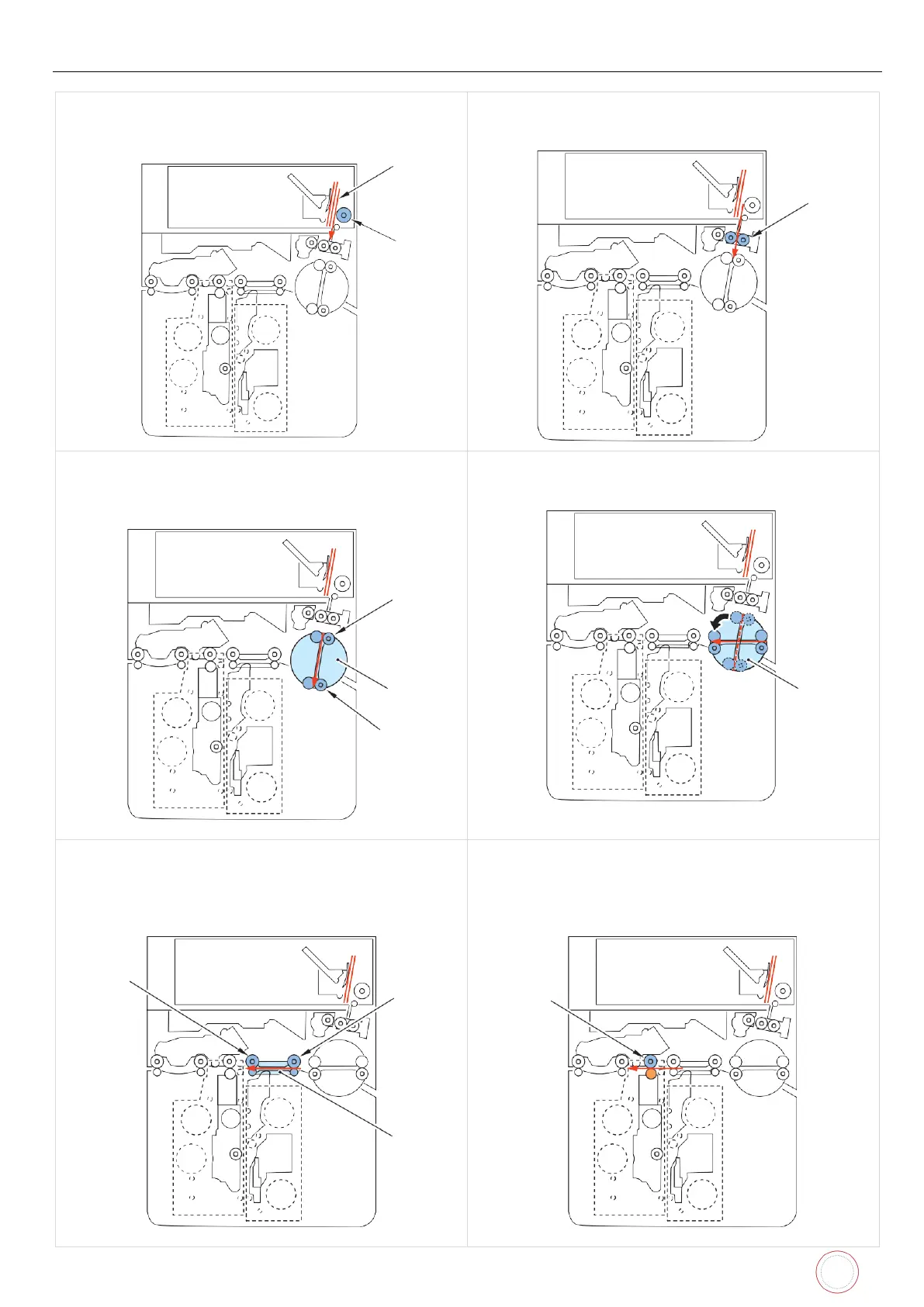

Feeding & Transport process
1. Cards [1] set in the card cassette are
supplied one at a time by the Supply Roller
[2].
2. Dust adhered to the card is removed by the
Cleaning Roller [1].
3. The cleaned card is fed to the Reverse
Assembly [3] by Reverse Rollers 1 [1] and 2
[2].
4. The Reverse Assembly [1] rotates, and the
card rotates.
5. The card is fed to the print standby position
by Card Feed Rollers 1 [1]
and 2 [2] while
skewing is corrected by the Feed Guide
Assembly [3].
6. The card is fed by the Card Feed Roller 3 [1],
and the first side is printed.
[1]
[2]
[1]
[1]
[2]
[3]
[1]
[1]
[2]
[3]
[1]

Evolis Avansia Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Polycarbonate, PVC, PVC Composite
Print technology	Dye-sublimation/Resin Thermal transfer
Print speed (color)	144 card/h
Card thickness (min)	0.76 mm
Duplex print speed (color)	96 card/h
Display	LCD
Lamination	-
Certification	CE, FCC, UL, IEC RoHS
Product color	Black, White
Internal memory	64 MB
Cable lock slot type	Kensington
Total input capacity	250 sheets
Wi-Fi	No
Security algorithms	IPSEC
Ethernet interface type	Fast Ethernet
Bundled software	cardPresso XXS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	297 mm
Width	340 mm
Height	436 mm
Weight	20000 g
