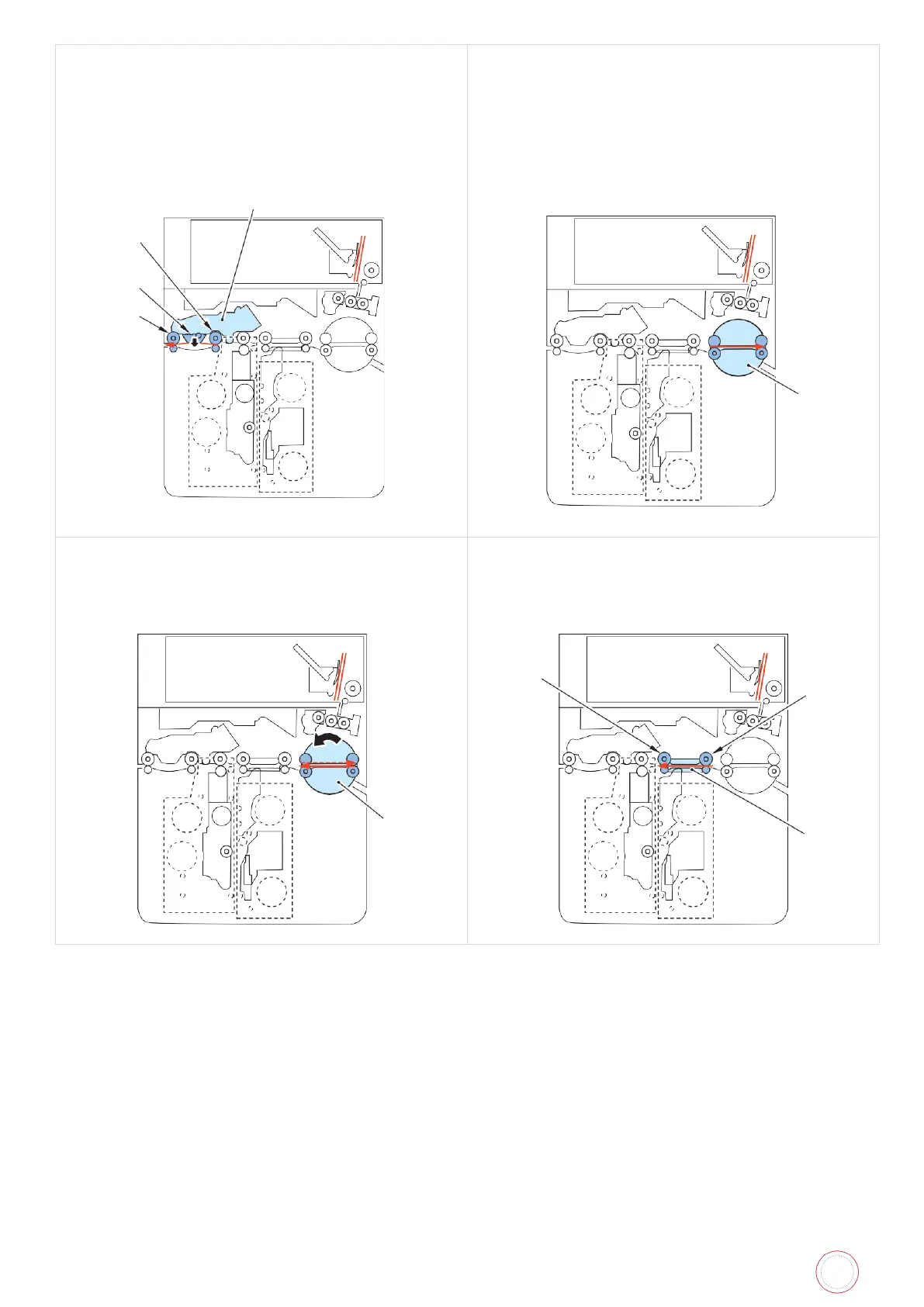

7. The card is fed to the Decurl Assembly [3] by
Card Feed Rollers 4 [1] and 5 [2]. If there is a
decurl setting, the Decurl Plate [4] of the
Decurl Assembly descends and corrects
the curling of the card. The card is fed and
ejected by the Card Feed Roller 5 (step 13).
8. In case of printing on the second side, the
card is fed to the Reverse Assembly [1].
9. The Reverse Assembly [1] rotates, and the
card rotates 180 degrees and turns over.
10. The card is fed to the print standby position
by Card
Feed Rollers 1 [1] and 2 [2] while
skewing is corrected by the Feed Guide
Assembly [3].
[1]
[2]
[3]
[4]
[1]
[1]
[1]
[2]
[3]

Evolis Avansia Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Polycarbonate, PVC, PVC Composite
Print technology	Dye-sublimation/Resin Thermal transfer
Print speed (color)	144 card/h
Card thickness (min)	0.76 mm
Duplex print speed (color)	96 card/h
Display	LCD
Lamination	-
Certification	CE, FCC, UL, IEC RoHS
Product color	Black, White
Internal memory	64 MB
Cable lock slot type	Kensington
Total input capacity	250 sheets
Wi-Fi	No
Security algorithms	IPSEC
Ethernet interface type	Fast Ethernet
Bundled software	cardPresso XXS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	297 mm
Width	340 mm
Height	436 mm
Weight	20000 g
