Evolis Avansia Service Manual

Service Manual_AVA1_ENG-20220922_I 181
STEP 17 - BUSHING Ø6 Ø10 LG6 WITH FLATS – CP013577

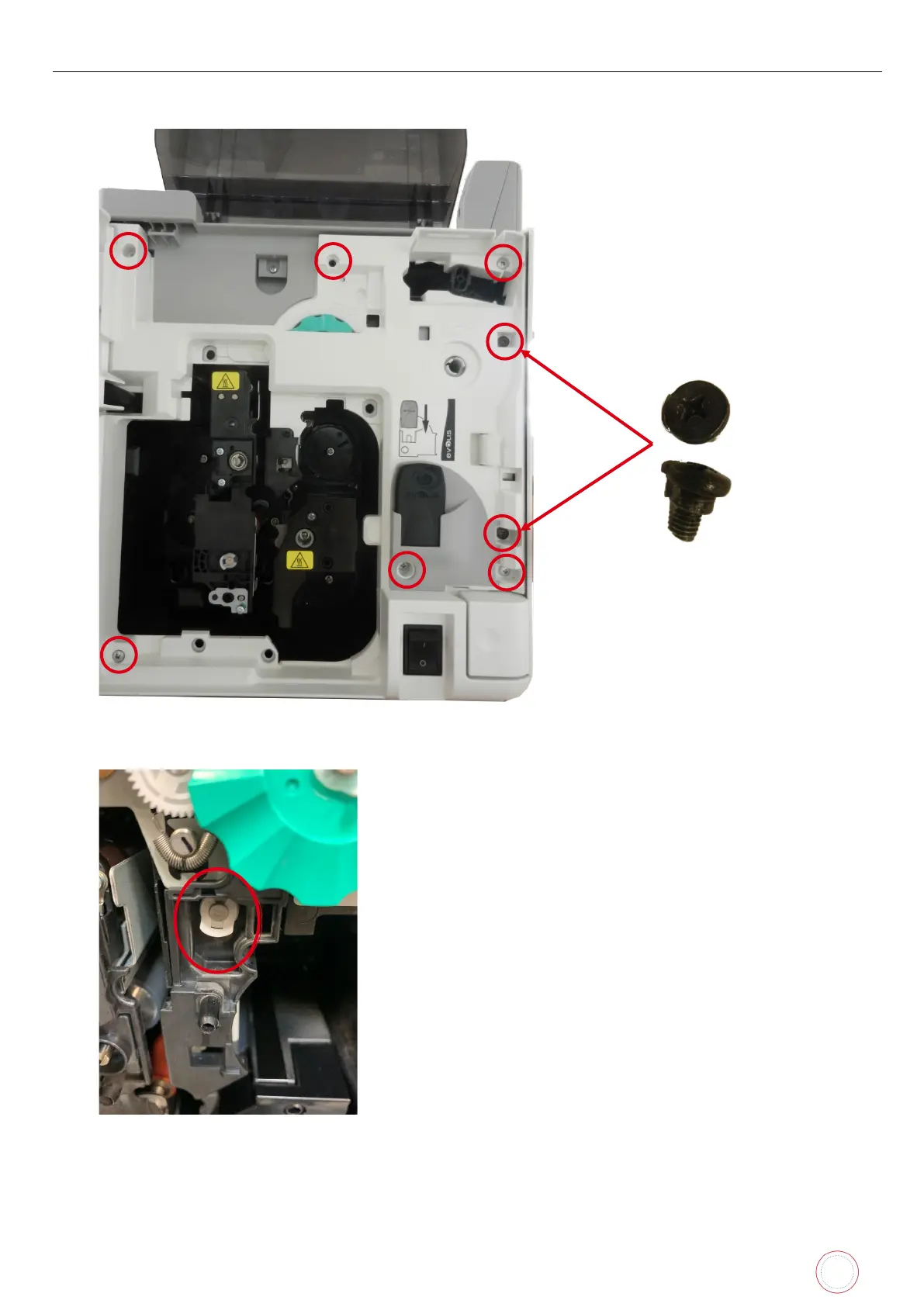

1. Remove the eight screws of the face cover (remember the position of the two black screws).
2. Remove the white clip then remove the bushing, put in place the new bushing and the white clip.
3. Carry out the steps in reverse.

Evolis Avansia Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Polycarbonate, PVC, PVC Composite
Print technology	Dye-sublimation/Resin Thermal transfer
Print speed (color)	144 card/h
Card thickness (min)	0.76 mm
Duplex print speed (color)	96 card/h
Display	LCD
Lamination	-
Certification	CE, FCC, UL, IEC RoHS
Product color	Black, White
Internal memory	64 MB
Cable lock slot type	Kensington
Total input capacity	250 sheets
Wi-Fi	No
Security algorithms	IPSEC
Ethernet interface type	Fast Ethernet
Bundled software	cardPresso XXS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	297 mm
Width	340 mm
Height	436 mm
Weight	20000 g
